SKU: N1300-256SS

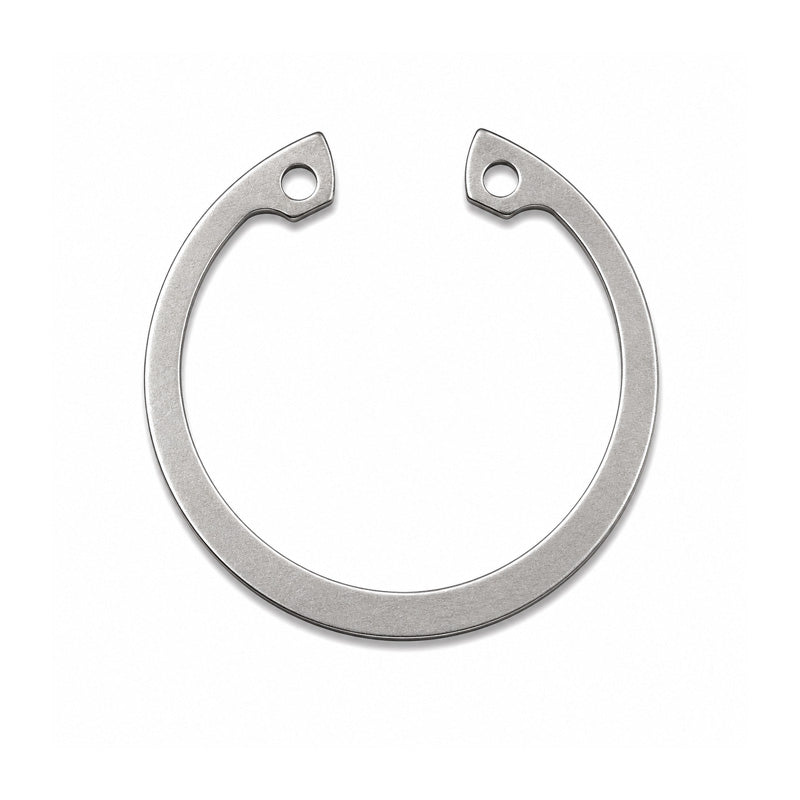

Stainless Steel Internal Circlip for 2.56 inch Bore Diameter Un-Sprung Diameter 2.884 inch
Stainless Steel Internal Circlip for 2.56 inch Bore Diameter Un-Sprung Diameter 2.884 inch
Equivalent to: N1300-256SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 65.09mm = 2.562 (2-9/16) inch
- Outside Diameter:
- 73.25mm = 2.884 inch
- Material:
- Stainless Steel
- Thickness:
- 2.36mm = 0.093 inch
- Groove Diameter:
- 68.94mm = 2.714 inch
Technical
Technical

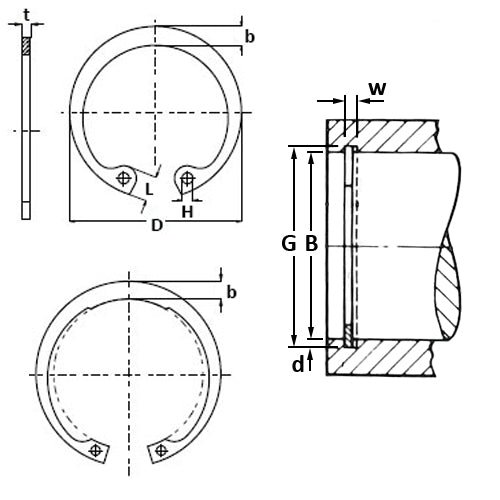

| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 2.562 inch |
| Ring Thickness (t) | 0.093 inch |
| Thickness tolerance (t) | 0.093 inch |
| Unstressed diameter (D) | 2.884 inch |
| Unstressed diameter tolerance (D) | +0.040 / -0.030 inch |
| Lug (L) | 0.268 inch |
| Beam (b) | 0.222 inch |
| h | 0.108 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.714 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.103 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.076 inch |
