SKU: N06-SKF

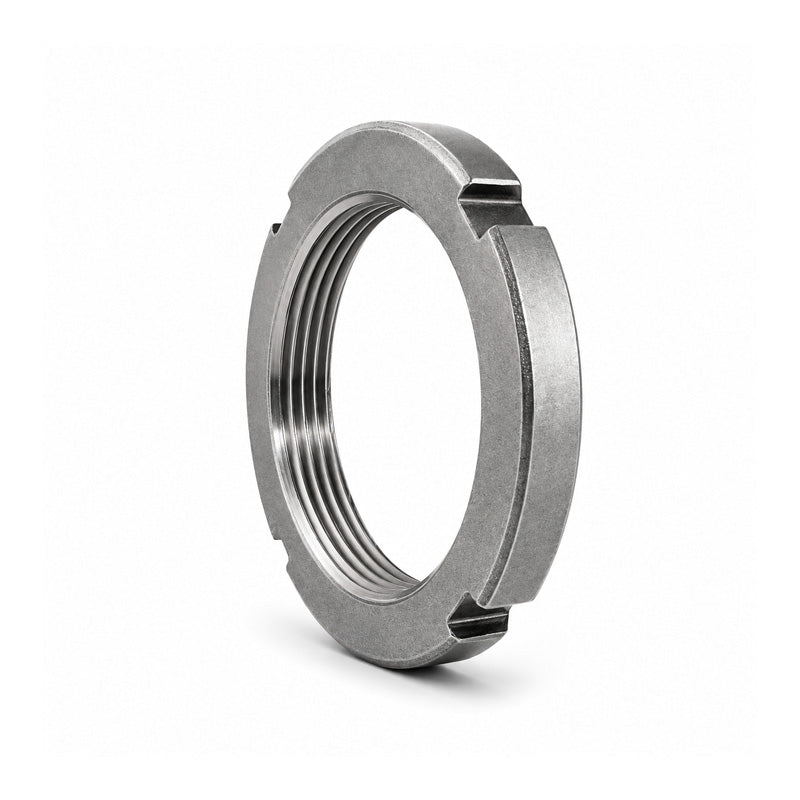

SKF N06 Lock Nut (Lock Washer Type) 1.173x1.5x1.755 inch
SKF N06 Lock Nut (Lock Washer Type) 1.173x1.5x1.755 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 1.173 inch
Technical
Technical
| G | 1.173 inch |
|---|---|
| Threads per inch | 18 |
| d<sub>1</sub> | 1.5 inch |
| d<sub>3</sub> max | 1.755 inch |
| B | 0.416 inch |
| b | 0.178 inch |
| h | 0.104 inch |
| Static axial load carrying capacity | 12814 lbf |
| Mass | 0.068 kg |
| Associated spanner | HN5-6 |
| Associated locking device | W06 |
