SKU: N030-SKF

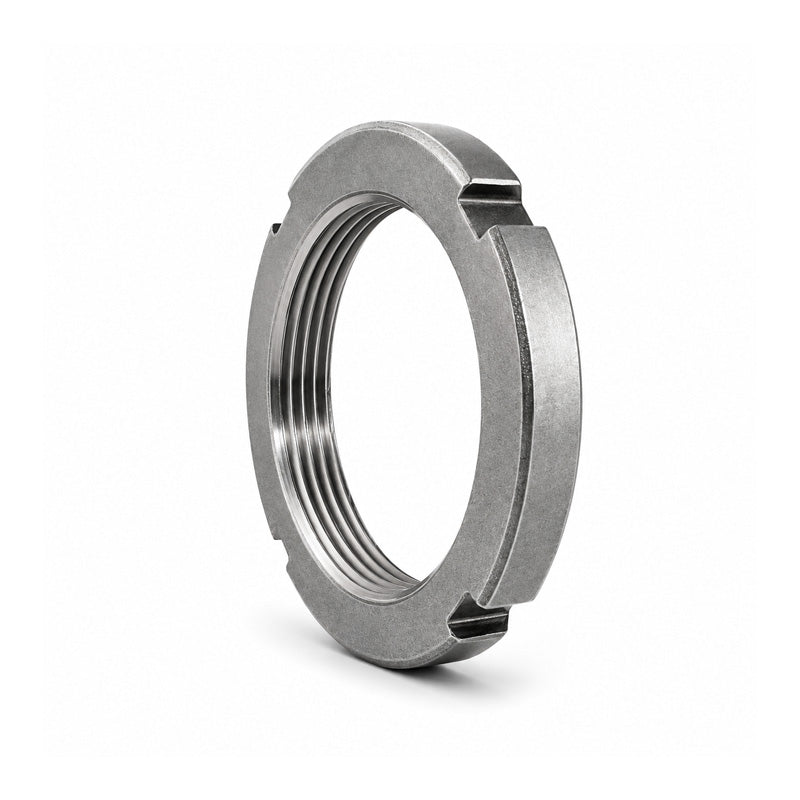

SKF N030 Lock Nut (Lock Washer Type) 5.888x6.688x7.13 inch
SKF N030 Lock Nut (Lock Washer Type) 5.888x6.688x7.13 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low-profile lock nuts are commonly used together with bearings in the 230 series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 5.888 inch
Technical
Technical
| G | 5.888 inch |
|---|---|
| Threads per inch | 12 |
| d<sub>1</sub> | 6.688 inch |
| d<sub>3</sub> max | 7.13 inch |
| B | 0.979 inch |
| b | 0.61 inch |
| h | 0.229 inch |
| Static axial load carrying capacity | 89924 lbf |
| Mass | 1.583 kg |
| Associated spanner | TMFN23-30 |
| Associated locking device | W030 |
