SKU: N028-SKF

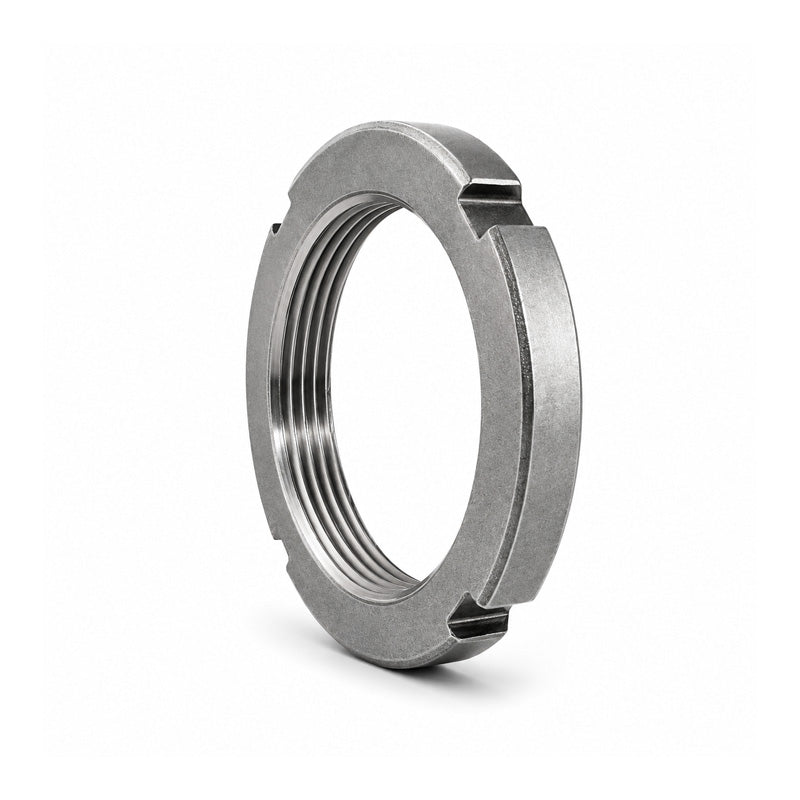

SKF N028 Lock Nut (Lock Washer Type) 5.497x6.109x6.505 inch
SKF N028 Lock Nut (Lock Washer Type) 5.497x6.109x6.505 inch
Out of stock
Share this product
Description
Description
Low Profile Lock Nuts: These lock nuts are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. These low-profile lock nuts are commonly used together with bearings in the 230 series.
Benefits: Efficient, secure, inexpensive, removable and often re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 5.497 inch
Technical
Technical
| G | 5.497 inch |
|---|---|
| Threads per inch | 12 |
| d<sub>1</sub> | 6.109 inch |
| d<sub>3</sub> max | 6.505 inch |
| B | 0.948 inch |
| b | 0.485 inch |
| h | 0.198 inch |
| Static axial load carrying capacity | 71939 lbf |
| Mass | 1.1657 kg |
| Associated spanner | TMFN23-30 |
| Associated locking device | W028 |
