SKU: MST1055-2K-RHP

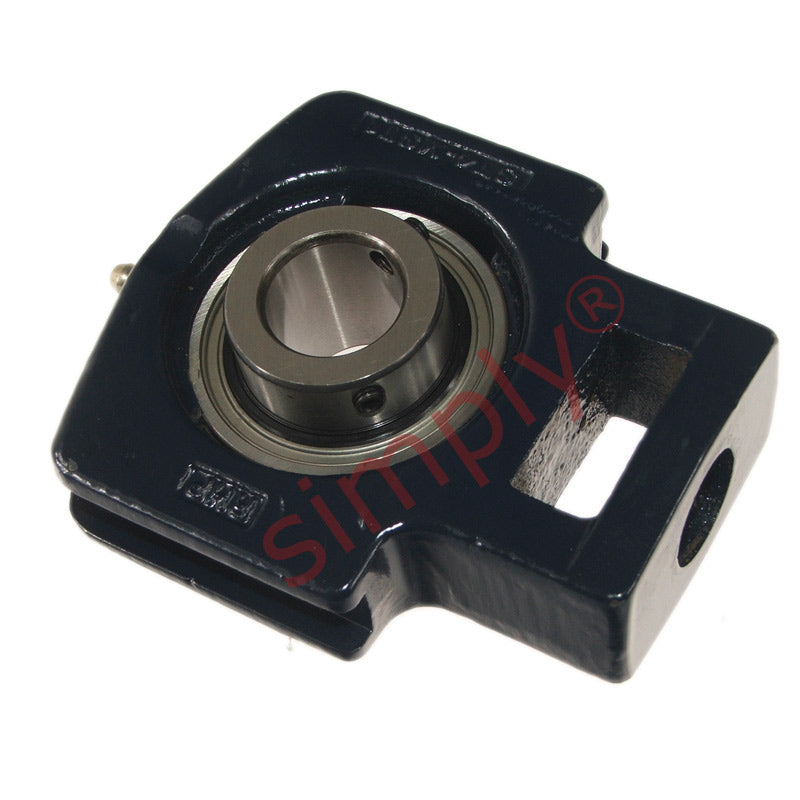

RHP MST1055-2K Cast Iron Take Up Unit and 2 inch Bore Insert

RHP MST1055-2K Cast Iron Take Up Unit and 2 inch Bore Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2 inch
L 7.165 inch
L1 4.488 inch
L2 0.748 inch
L3 1.26 inch
L4 3.839 inch
L5 2.756 inch
H 5.748 inch
H1 3.976 inch
H2 2.52 inch
H3 5.118 inch
N 1.378 inch
A 2.5 inch
A1 1.831 inch
A2 1.063 inch
B - inch
B5 1.772 inch
s - inch
d1 - inch
d4 2.953 inch
Dynamic load 43500 N
Static load 29200 N
Rec max speed 3100 rpm
Weight 4.2 kg
Insert <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
