SKU: M88043/010/2/QCL7C-SKF

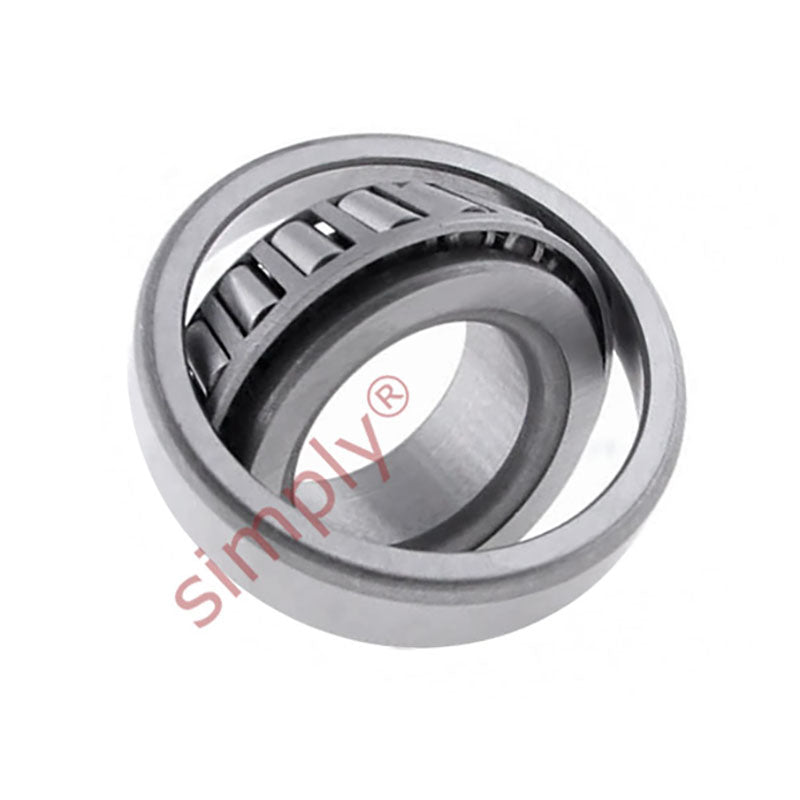

SKF M88043/010/2/QCL7C Imperial Taper Roller Bearing 1.1875x2.6875x0.587 inches

Name: SKF M88043/010/2/QCL7C Imperial Taper Roller Bearing 1.1875x2.6875x0.587 inches
Brand: SKF
SKU: M88043/010/2/QCL7C-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 30.16mm = 1.187 (1-3/16) inch
Outside Diameter:: 68.26mm = 2.687 (2-11/16) inch
Width:: 14.91mm = 0.587 inch
Seals / Shields:: None

Technical

d	30.162mm
D	68.262mm
T	22.225mm
Dynamic load	55 kN
Static load	69.5 kN
Fatigue load limit Pu	7.8 kN
Reference speed	7500 rpm
Limiting speed	11000 rpm
Weight	0.41 kg
d1	52.3mm
B	22.225mm
C	17.462mm
r1r2 min	2.3mm
r3r4 min	1.5mm
a	19mm
da max	41mm
db min	39mm
Da min	54mm
Da max	60.5mm
Db min	64mm
Ca min	3mm
Cb min	4.5mm
ra max	2mm
rb max	1.5mm
Calculation factor e	0.54
Calculation factor Y	1.1
Calculation factor Y0	0.6
