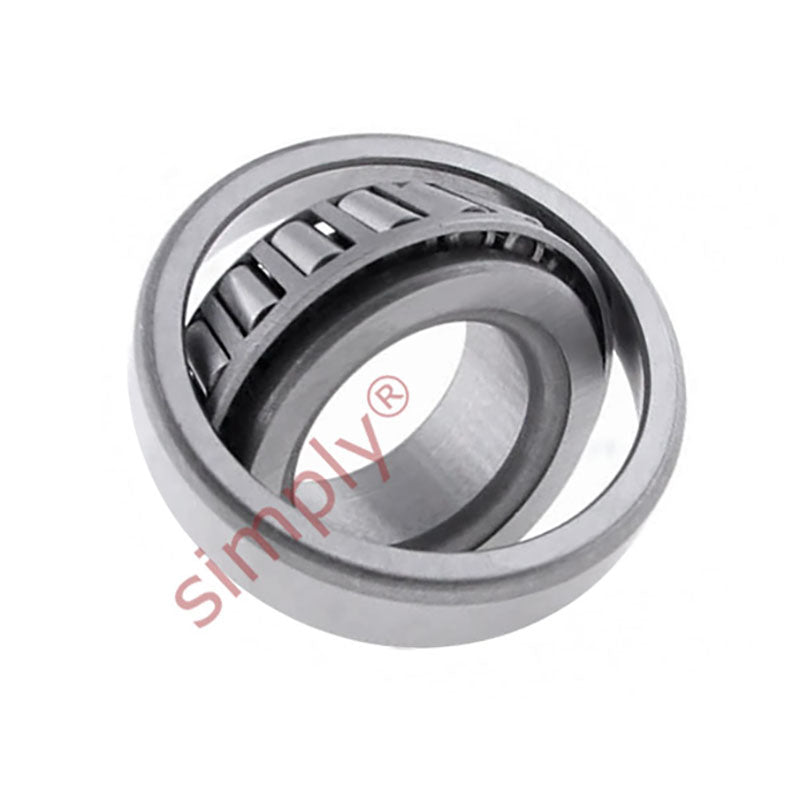

SKF M231649/610/VQ051 Imperial Taper Roller Bearing 6x8.75x1.8437 inches

Name: SKF M231649/610/VQ051 Imperial Taper Roller Bearing 6x8.75x1.8437 inches
Brand: SKF
SKU: M231649/610/VQ051-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 152.4mm = 6 inch
Outside Diameter:: 222.25mm = 8.75 (8-3/4) inch
Width:: 46.83mm = 1.844 (1-27/32) inch
Seals / Shields:: None

Technical

d	152.4mm
D	222.25mm
T	46.83mm
Dynamic load	330 kN
Static load	630 kN
Fatigue load limit Pu	62 kN
Reference speed	2000 rpm
Limiting speed	3000 rpm
Weight	5.9 kg
d1	186mm
B	46.83mm
C	34.925mm
r1r2 min	3.5mm
r3r4 min	1.5mm
a	40mm
da max	169mm
db min	165mm
Da min	200mm
Da max	214mm
Db min	210mm
Ca min	7mm
Cb min	11.5mm
ra max	3mm
rb max	1.5mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
