SKU: M-UELP207-106D1-NTN

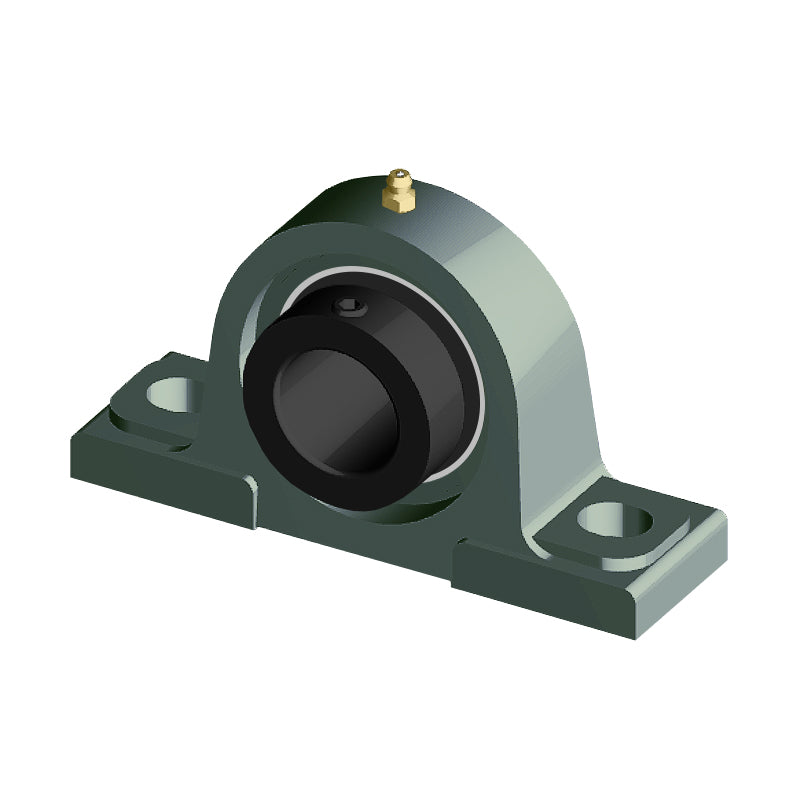

NTN M-UELP207-106D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/8 inch Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELP207-106D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/8 inch Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UELP
- Bolt Hole Centres:
- 5 inch
Technical
Technical
| Shaft diameter | 1-3/8 inch |
|---|---|
| H | 1-7/8 inch |
| L | 6-9/16 inch |
| J | 5 inch |
| A | 1-7/8 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 23/32 inch |
| H<sub>2</sub> | 3-21/32 inch |
| L<sub>1</sub> | 2-1/8 inch |
| B<sub>1</sub> | 2.012 inch |
| S | 0.74 inch |
| Fixing bolt | 1/2 inch |
| Mass | 4 lbs |
