SKU: M-UELFL211-202D1-NTN

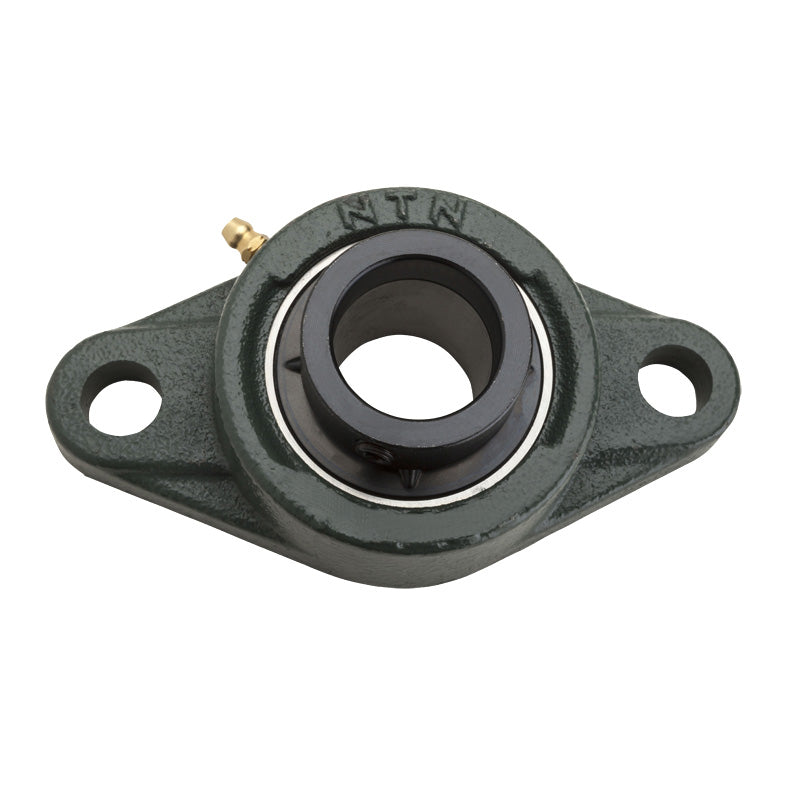

NTN M-UELFL211-202D1 Imperial Two Bolt Cast Iron Oval Housing with 2-1/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL211-202D1 Imperial Two Bolt Cast Iron Oval Housing with 2-1/8 inch Bore Eccentric Collar Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UELFL
- Bolt Hole Centres:
- 7-1/4 inch
Technical
Technical
| Shaft diameter | 2-1/8 inch |
|---|---|
| H | 8-13/16 inch |
| J | 7-1/4 inch |
| A<sub>2</sub> | 63/64 inch |
| A<sub>1</sub> | 23/32 inch |
| A | 1-11/16 inch |
| N | 3/4 inch |
| L | 5-1/8 inch |
| A<sub>0</sub> | 2-45/64 inch |
| B<sub>1</sub> | 2.811 inch |
| S | 1.093 inch |
| F min. | 2-7/8 inch |
| Fixing bolt | 5/8 inch |
| Mass | 7.1 lbs |
