SKU: M-UCUP205-013D1-NTN

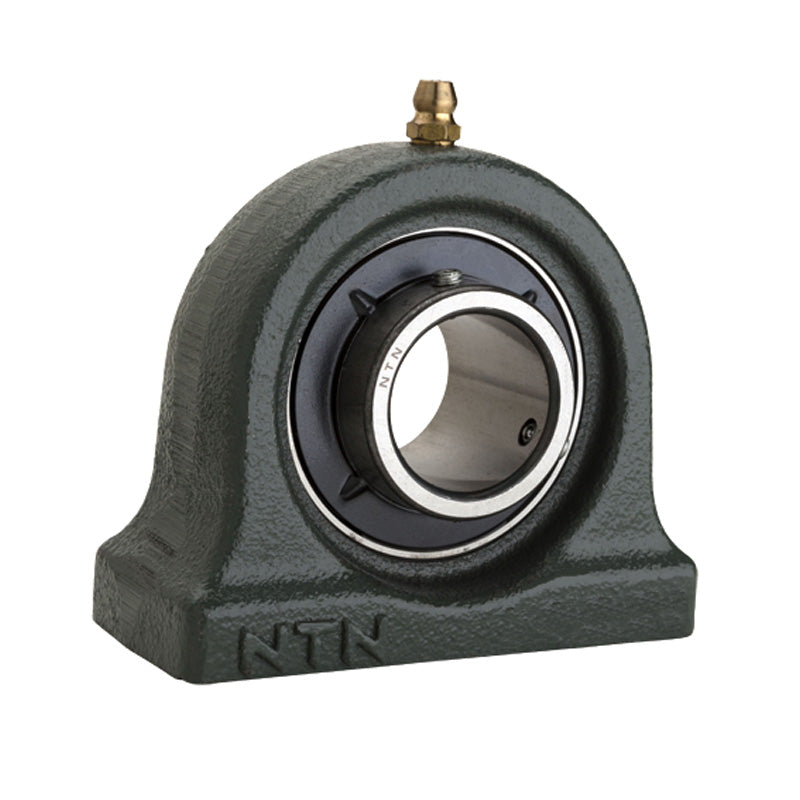

NTN M-UCUP205-013D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 13/16 inch Bore Insert - Allow 2-3 Days
NTN M-UCUP205-013D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 13/16 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Style:
- UCUP
- Bolt Hole Centres:
- 2-7/32 inch
Technical
Technical
| Shaft diameter | 13/16 inch |
|---|---|
| H | 1-7/16 inch |
| L | 3-5/16 inch |
| J | 2-7/32 inch |
| A | 1-1/2 inch |
| j | 19/32 inch |
| H<sub>1</sub> | 15/32 inch |
| H<sub>2</sub> | 2-27/32 inch |
| B | 1.3425 inch |
| S | 0.563 inch |
| N | M10X1.5 |
| Mass | 1.5 lbs |
