SKU: M-UCUP202-009D1-NTN

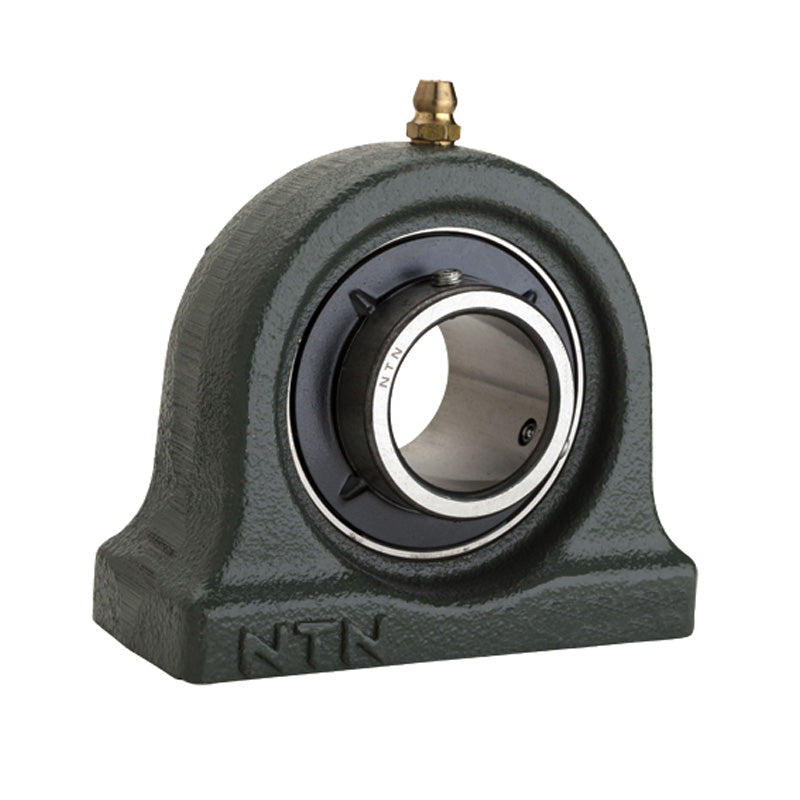

NTN M-UCUP202-009D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 9/16 inch Bore Insert - Allow 2-3 Days
NTN M-UCUP202-009D1 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 9/16 inch Bore Insert - Allow 2-3 Days
Out of stock
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- UCUP
- Bolt Hole Centres:
- 2-1/16 inch
Technical
Technical
| Shaft diameter | 9/16 inch |
|---|---|
| H | 1-3/16 inch |
| L | 3 inch |
| J | 2-1/16 inch |
| A | 1-1/2 inch |
| j | 1/2 inch |
| H<sub>1</sub> | 7/16 inch |
| H<sub>2</sub> | 2-7/16 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| N | M10X1.5 |
| Mass | 1.3 lbs |
