SKU: M-UCFA211-202D1-NTN

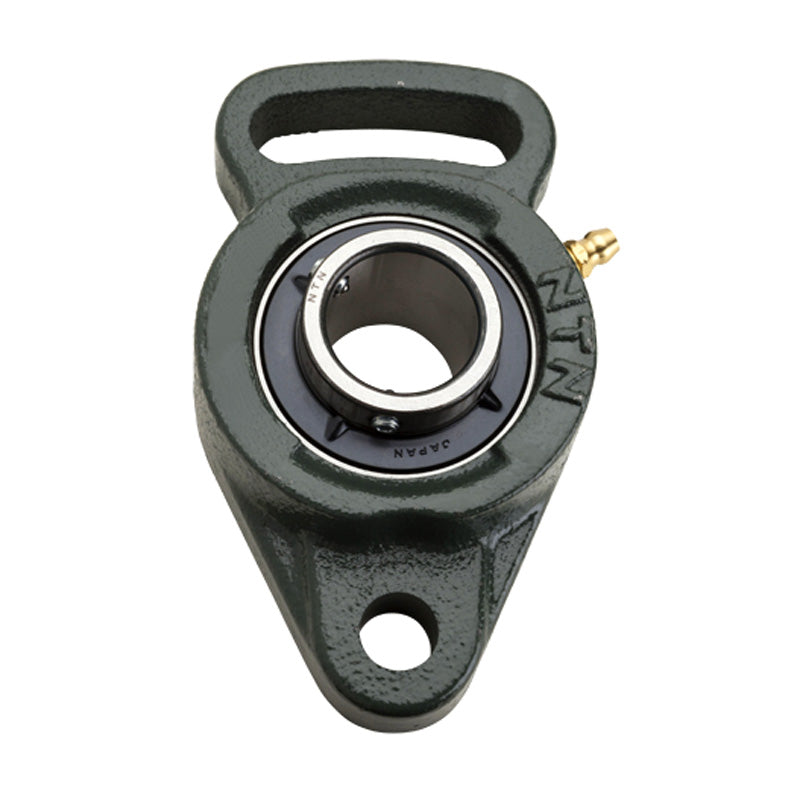

NTN M-UCFA211-202D1 Imperial Cast Iron Adjustable Flange Unit with 2-1/8 inch Insert - Allow 2-3 Days
NTN M-UCFA211-202D1 Imperial Cast Iron Adjustable Flange Unit with 2-1/8 inch Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 7-5/32 inch
Technical
Technical
| Shaft diameter | 2-1/8 inch |
|---|---|
| H | 8-1/2 inch |
| J | 7-5/32 inch |
| A<sub>2</sub> | 1-1/32 inch |
| A<sub>1</sub> | 25/32 inch |
| A | 1-11/16 inch |
| N | 43/64 inch |
| N<sub>1</sub> | 3-11/32 inch |
| L | 5-1/8 inch |
| L<sub>1</sub> | 4-1/32 inch |
| A<sub>0</sub> | 2-11/32 inch |
| B | 2.189 inch |
| S | 0.874 inch |
| Fixing bolt | 1/2 inch |
| Mass | 6.4 lbs |
