SKU: M-CM-UCFL206-104D1-NTN

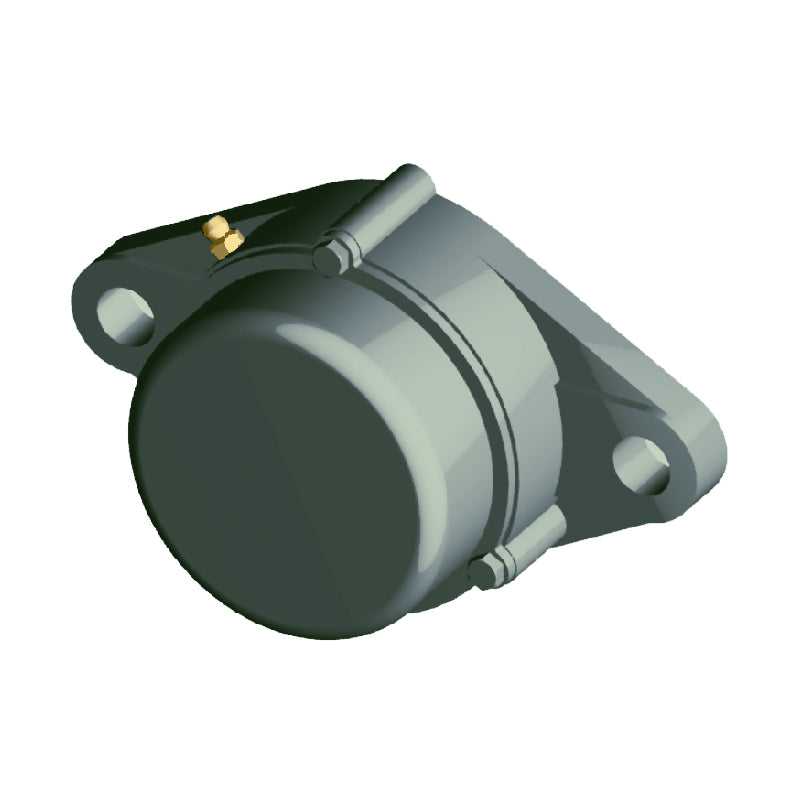

NTN M-CM-UCFL206-104D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
NTN M-CM-UCFL206-104D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-1/4 inch Bore Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 4-39/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-1/4 inch |
| H | 5-13/16 inch |
| J | 4-39/64 inch |
| A<sub>2</sub> | 45/64 inch |
| A<sub>1</sub> | 1/2 inch |
| A | 1-7/32 inch |
| N | 5/8 inch |
| L | 3-5/32 inch |
| B | 1.5 inch |
| S | 0.626 inch |
| t<sub>2</sub> | 7/16 inch |
| A<sub>5</sub> | 2-7/32 inch |
| L<sub>1</sub> | 3-11/32 inch |
| L<sub>2</sub> | 1-9/16 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 2.6 lbs |
