SKU: M-ASPFL207-105-NTN

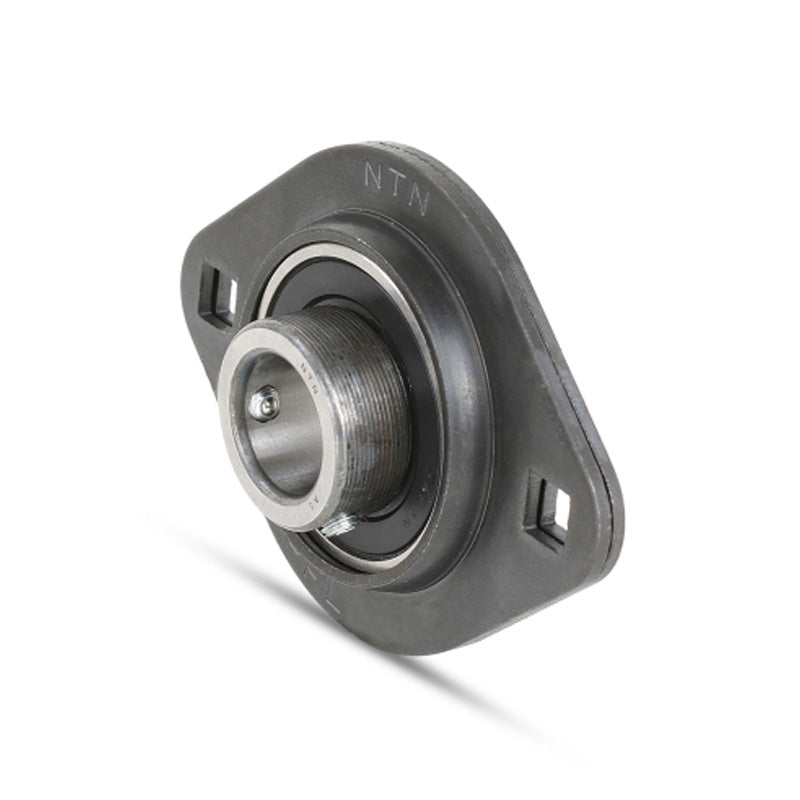

NTN M-ASPFL207-105 Oval 2 Bolt Pressed Steel Bearing Housing with 1-5/16 inch Insert - Allow 2-3 Days
NTN M-ASPFL207-105 Oval 2 Bolt Pressed Steel Bearing Housing with 1-5/16 inch Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- ASPFL
- Bolt Hole Centres:
- 3-15/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-5/16 inch |
| H | 4-13/16 inch |
| J | 3-15/16 inch |
| A<sub>1</sub> | 0.205 inch |
| N | 7/16 inch |
| A | 25/32 inch |
| L | 3-11/16 inch |
| B | 1.3386 inch |
| S | 0.335 inch |
| H<sub>1</sub> min | 3-3/16 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Max load recommended radial | 1300 lbf |
| Max load recommended axial | 650 lbf |
| --- | Unit information |
| Mass | 1.3 lbs |
