SKU: LPBR3/4A-RHP

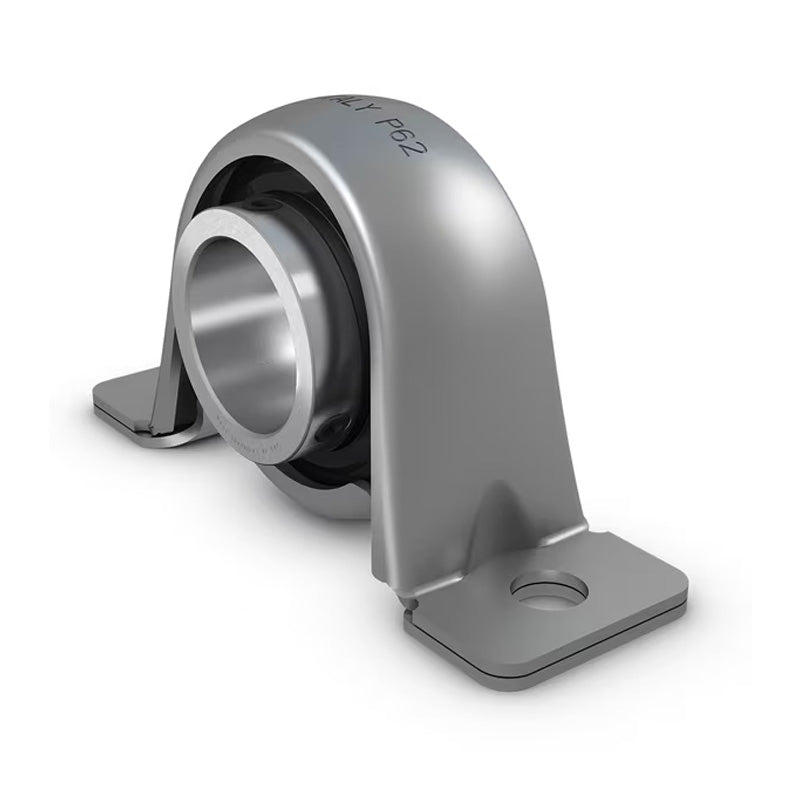

RHP LBPR3/4A 3/4 inch Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
RHP LBPR3/4A 3/4 inch Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
Out of stock
Description
Description
|
RHP LBPR - A Type 2 Bolt Pillow Block Pressed Steel Bearing Housings with Rubber Liner: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied flat back sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The LBP R types have a rubber liner in the top and bottom of the housing to provide shock resilience and a level of protection against vibration.The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- LPBR
- Bolt Hole Centres:
- 86.004mm = 3.386 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 4.252 inch |
| H | 1.126 inch |
| H1 | 0.11 inch |
| H2 | 2.197 inch |
| J | 3.386 inch |
| G | 0.375 inch |
| A | 1.248 inch |
| A1 | 0.85 inch |
| B | 1.219 inch |
| B1 | 1.015 inch |
| B2 | 1.217 inch |
| B3 | 1.717 inch |
| s | 0.502 inch |
| s1 | 0.298 inch |
| s2 | 0.674 inch |
| d1 | 1.122 inch |
| d2 | 1.311 inch |
| Max radial housing load | 1110 N |
| Rec max speed | 3000 rpm |
| Weight | 0.3 kg |
| Insert | 1020-3/4 |
| Casting group | 3 |
