SKU: LPBR25DEC-RHP

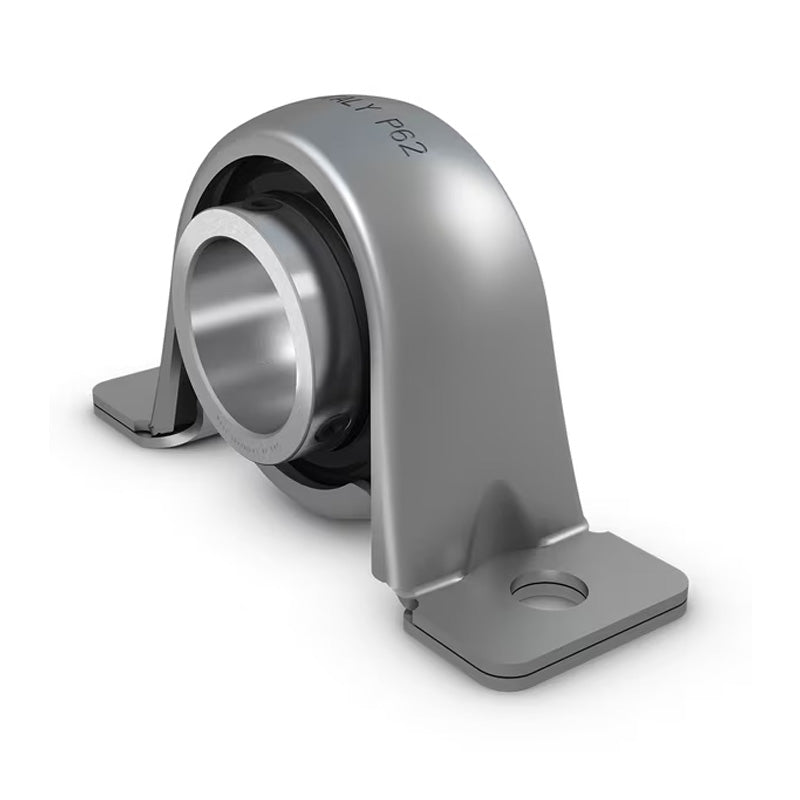

RHP LPBR25DEC 25mm Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
RHP LPBR25DEC 25mm Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
Out of stock
Description
Description
|
RHP LBPR - DEC Type 2 Bolt Pillow Block Pressed Steel Bearing Housings with Rubber Liner: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied flat back sealed bearing insert has an eccentric collar and grub screw for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The LBP R types have a rubber liner in the top and bottom of the housing to provide shock resilience and a level of protection against vibration.The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LPBR
- Bolt Hole Centres:
- 95mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 117.5mm |
| H | 33.3mm |
| H1 | 3.6mm |
| H2 | 65.7mm |
| J | 95mm |
| G | 10mm |
| A | 37.5mm |
| A1 | 25.5mm |
| B | 34.11mm |
| B1 | 27.35mm |
| B2 | 30.92mm |
| B3 | 44.4mm |
| s | 14.32mm |
| s1 | 7.56mm |
| s2 | 17.49mm |
| d1 | 34.01mm |
| d2 | 38.1mm |
| Max radial housing load | 1330 N |
| Rec max speed | 2500 rpm |
| Weight | 0.5 kg |
| Insert | 1025-25 |
| Casting group | 4 |
