SKU: LPBR1A-RHP

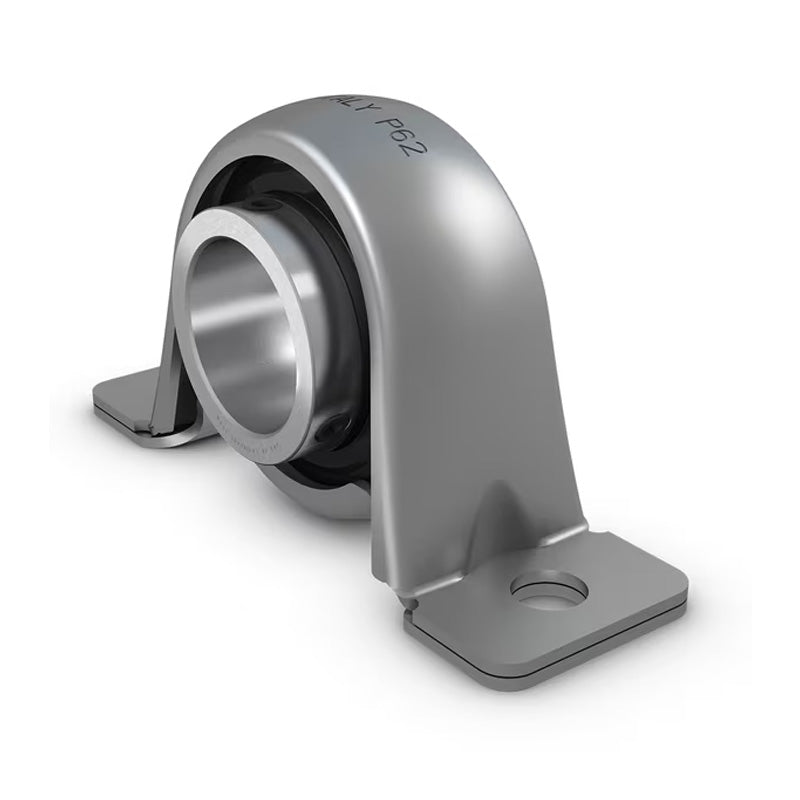

RHP LPBR1A 1 inch Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
RHP LPBR1A 1 inch Bore 2 Bolt Pressed Steel Pillow Housing with Rubber Liner Bearing
Out of stock
Description
Description
|
RHP LBPR - A Type 2 Bolt Pillow Block Pressed Steel Bearing Housings with Rubber Liner: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied flat back sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The LBP R types have a rubber liner in the top and bottom of the housing to provide shock resilience and a level of protection against vibration.The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- LPBR
- Bolt Hole Centres:
- 94.996mm = 3.74 inch
Technical

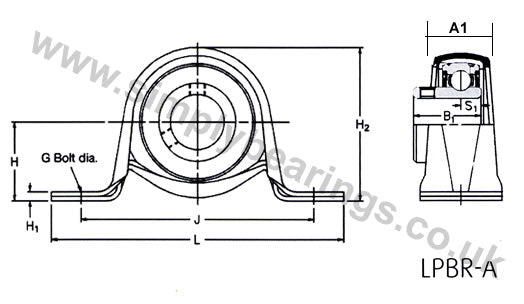

Technical
| Bore | 1 inch |
|---|---|
| L | 4.626 inch |
| H | 1.311 inch |
| H1 | 0.142 inch |
| H2 | 2.587 inch |
| J | 3.74 inch |
| G | 0.375 inch |
| A | 1.476 inch |
| A1 | 1.004 inch |
| B | 1.343 inch |
| B1 | 1.077 inch |
| B2 | 1.217 inch |
| B3 | 1.748 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| s2 | 0.689 inch |
| d1 | 1.339 inch |
| d2 | 1.5 inch |
| Max radial housing load | 1330 N |
| Rec max speed | 2500 rpm |
| Weight | 0.5 kg |
| Insert | 1025-1 |
| Casting group | 4 |
