SKU: LPB3/4A-RHP

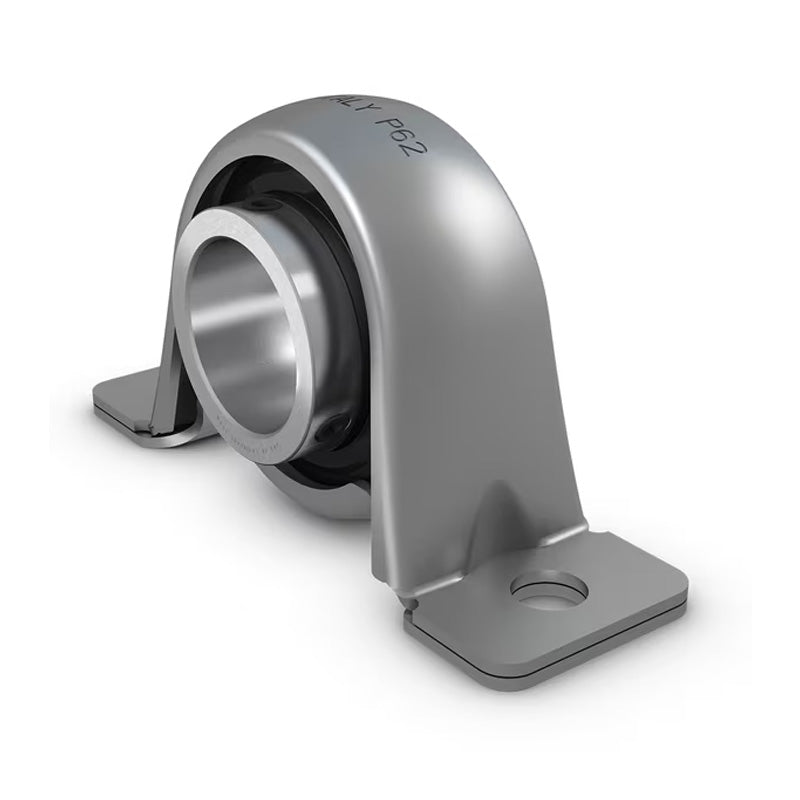

RHP LPB3/4A 3/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
RHP LPB3/4A 3/4 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
Out of stock
Description
Description
|
RHP LBP - A Type 2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied flat back sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains fairly rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- LPB
- Bolt Hole Centres:
- 75.997mm = 2.992 inch
Technical
Technical

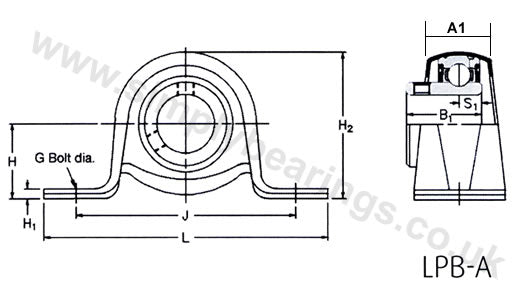

| Bore | 3/4 inch |
|---|---|
| L | 3.874 inch |
| H | 1 inch |
| H1 | 0.094 inch |
| H2 | 1.965 inch |
| J | 2.992 inch |
| G | 0.3125 inch |
| A | 1.248 inch |
| A1 | 0.85 inch |
| B | 1.219 inch |
| B1 | 1.015 inch |
| B2 | 1.217 inch |
| B3 | 1.717 inch |
| s | 0.502 inch |
| s1 | 0.298 inch |
| s2 | 0.674 inch |
| d1 | 1.122 inch |
| d2 | 1.311 inch |
| Max radial housing load | 1570 N |
| Rec max speed | 3000 rpm |
| Weight | 0.2 kg |
| Insert | 1020-3/4 |
| Casting group | 2 |
