SKU: LPB15/16-RHP

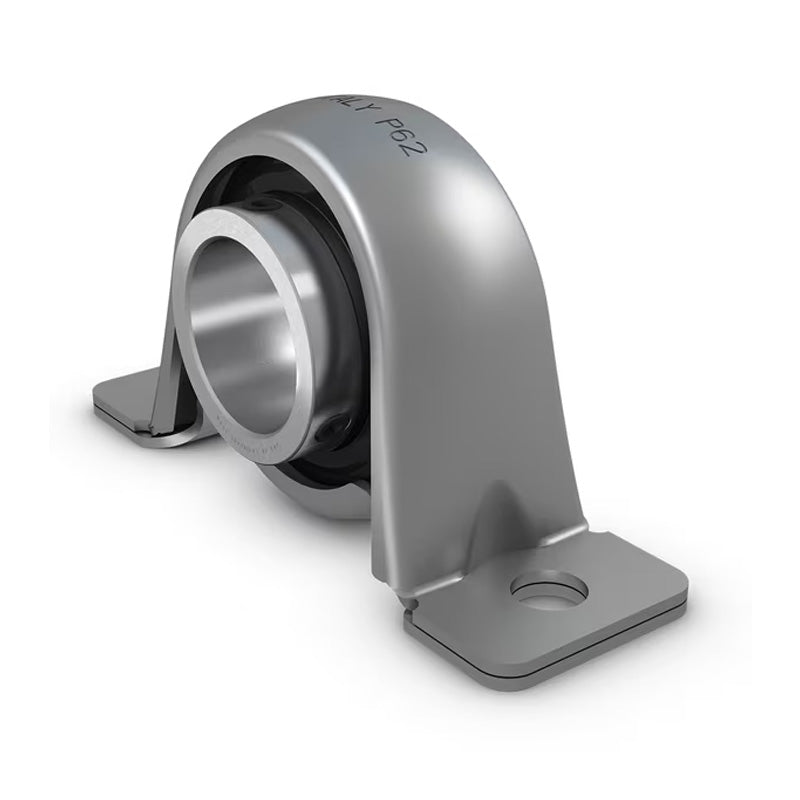

RHP LPB15/16 15/16 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
RHP LPB15/16 15/16 inch Bore 2 Bolt Pressed Steel Pillow Housing Bearing
Out of stock
Description
Description
|
RHP LBP Type 2 Bolt Pillow Block Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied full width sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- LPB
- Bolt Hole Centres:
- 86.004mm = 3.386 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 4.252 inch |
| H | 1.126 inch |
| H1 | 0.11 inch |
| H2 | 2.197 inch |
| J | 3.386 inch |
| G | 0.375 inch |
| A | 1.248 inch |
| A1 | 0.85 inch |
| B | 1.343 inch |
| B1 | 1.077 inch |
| B2 | 1.217 inch |
| B3 | 1.748 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| s2 | 0.689 inch |
| d1 | 1.339 inch |
| d2 | 1.5 inch |
| Max radial housing load | 1780 N |
| Rec max speed | 2500 rpm |
| Weight | 0.3 kg |
| Insert | 1025-15/16 |
| Casting group | 3 |
