SKU: LMB.32.UU.AJ.EU

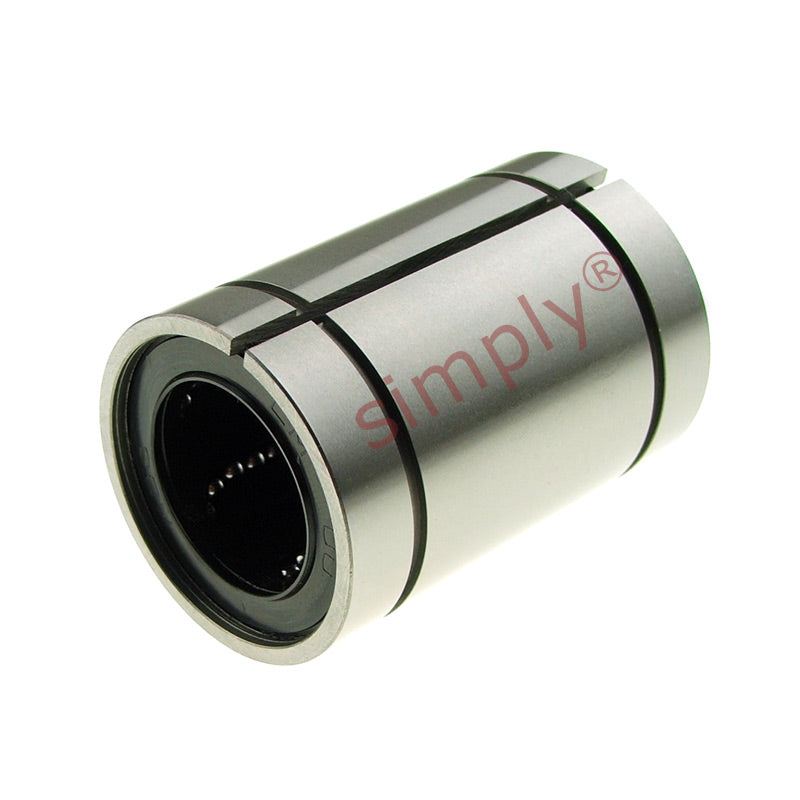

LMB32UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 2x3x4 inch
Out of stock
Share this product
Description
LMB-AJ Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 76.2mm = 3 inch
- Length:
- 101.6mm = 4 inch
Technical
| Inside Diameter dr | 2 inch Tol - 0 to + 8µm |
|---|---|
| Outside Diameter D | 3 inch Tol - 0 to + 22µm |
| Length L | 4 inch Tol - 0 to + 300µm |
| W | 0.1029 inch |
| D1 | 2.8379 inch |
| B | 3.1917 inch |
| h | 0.012 inch |
| Eccentricity | 17 to 25µm |
| Dynamic load C | 390 kgf |
| Static load C<sub>o</sub> | 810 kgf |
| Weight | 1310 g |
| Number of ball rows | 5 |
| Tolerances dr & D | Apply to closed type only |
