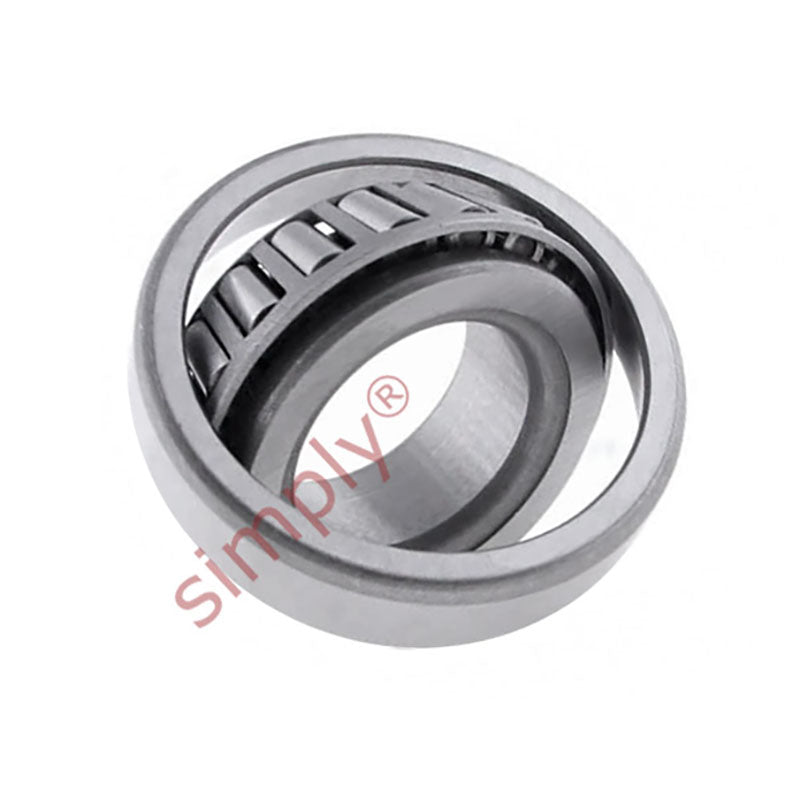

SKF LM772748/710/HA1 Imperial Taper Roller Bearing 19.25x24.995x3.3125 inches

Name: SKF LM772748/710/HA1 Imperial Taper Roller Bearing 19.25x24.995x3.3125 inches
Brand: SKF
SKU: LM772748/710/HA1-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 488.95mm = 19.25 (19-1/4) inch
Outside Diameter:: 634.87mm = 24.995 inch
Width:: 84.13mm = 3.312 (3-5/16) inch
Seals / Shields:: None

Technical

d	488.95mm
D	634.873mm
T	84.138mm
Dynamic load	1450 kN
Static load	3650 kN
Fatigue load limit Pu	265 kN
Reference speed	600 rpm
Limiting speed	850 rpm
Weight	63.5 kg
d1	560mm
B	84.138mm
C	61.912mm
r1r2 min	6.4mm
r3r4 min	3.3mm
a	124mm
da max	519mm
db min	520mm
Da min	584mm
Da max	618mm
Db min	613mm
Ca min	13mm
Cb min	22mm
ra max	6mm
rb max	3mm
Calculation factor e	0.48
Calculation factor Y	1.25
Calculation factor Y0	0.7
