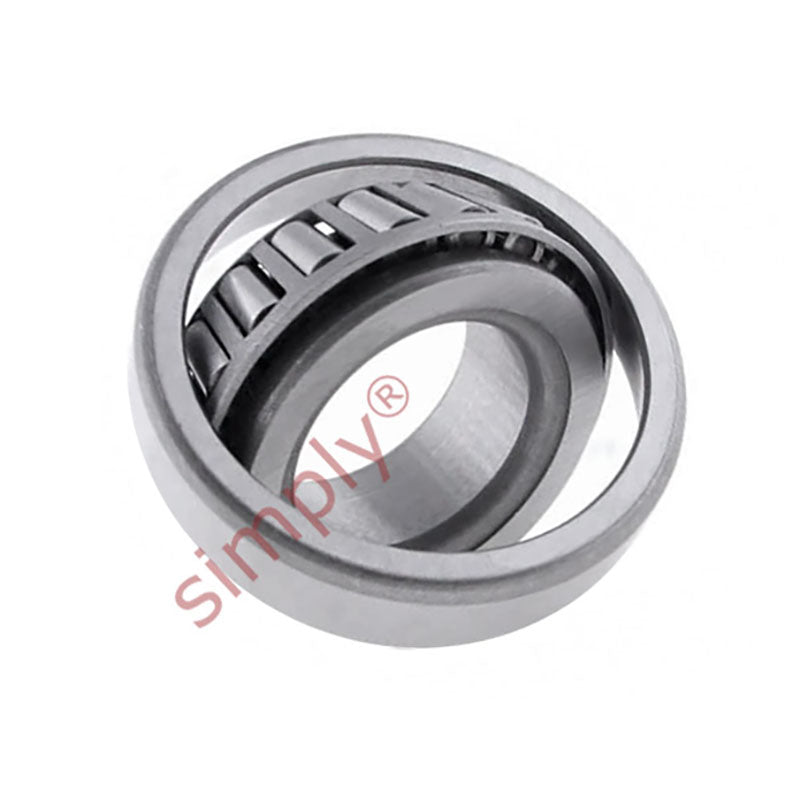

SKF LL566848/810/HA1 Imperial Taper Roller Bearing 15.875x18.125x1.125 inches

Name: SKF LL566848/810/HA1 Imperial Taper Roller Bearing 15.875x18.125x1.125 inches
Brand: SKF
SKU: LL566848/810/HA1-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 403.23mm = 15.875 (15-7/8) inch
Outside Diameter:: 460.38mm = 18.125 (18-1/8) inch
Width:: 28.58mm = 1.125 (1-1/8) inch
Seals / Shields:: None

Technical

d	403.225mm
D	460.375mm
T	28.575mm
Dynamic load	246 kN
Static load	765 kN
Fatigue load limit Pu	58.5 kN
Reference speed	800 rpm
Limiting speed	1200 rpm
Weight	6.7 kg
d1	430mm
B	28.575mm
C	20.638mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	70mm
da max	417mm
db min	420mm
Da min	445mm
Da max	443mm
Db min	448mm
Ca min	6mm
Cb min	7.5mm
ra max	3mm
rb max	3mm
Calculation factor e	0.4
Calculation factor Y	1.5
Calculation factor Y0	0.8
