SKU: LFR.5207-302RS.MB

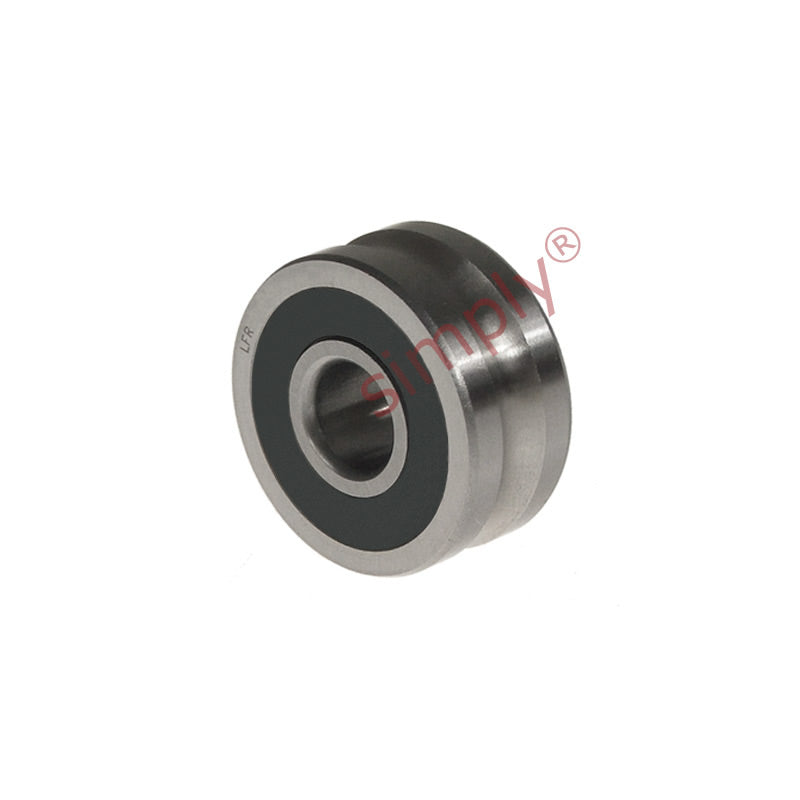

Major Brand LFR5207-302RS Yoke Type Track Roller with U Groove 30x80x27mm
Major Brand LFR5207-302RS Yoke Type Track Roller with U Groove 30x80x27mm
Equivalent to: LFR5207-30NPP
Out of stock
Share this product
Description
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 80mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 30mm |
|---|---|
| D max | 80mm |
| B | 29mm |
| AT | 51mm |
| C | 27mm |
| ds | 30mm |
| r min | 1mm |
| Dynamic load | 38000 N |
| Static load | 20800 N |
| Speed in grease | 21400 rpm |
| Speed in oil | 36200 rpm |
