SKU: LFR.5202-122Z.MB

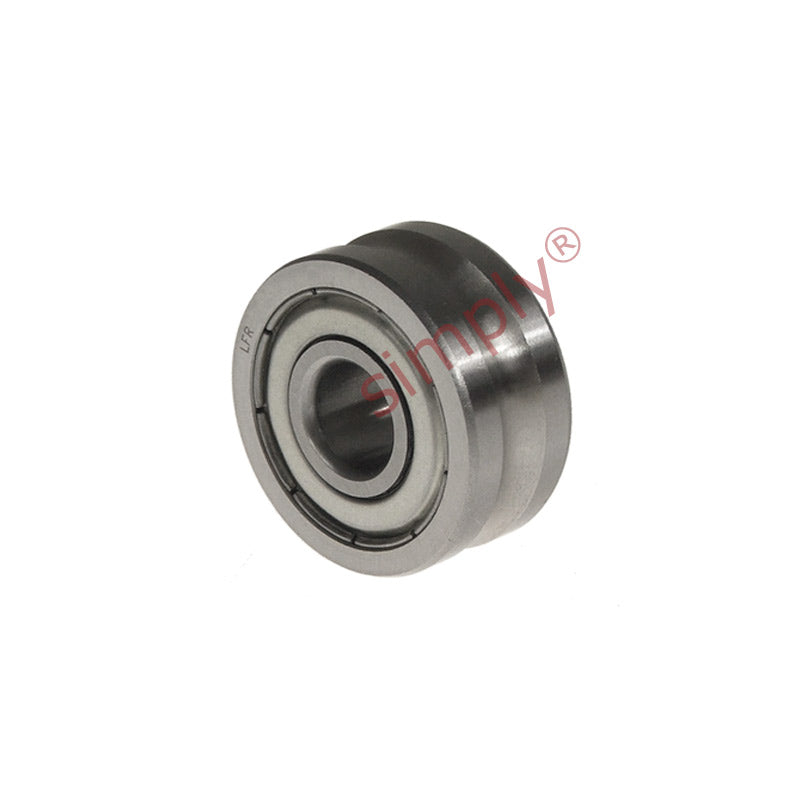

Major Brand LFR5202-122Z Yoke Type Track Roller with U Groove 15x45x15.9mm
Major Brand LFR5202-122Z Yoke Type Track Roller with U Groove 15x45x15.9mm
Equivalent to: LFR5202-12KDD
Out of stock
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 45mm
- Width:
- 15.9mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 15mm |
|---|---|
| D max | 45mm |
| B | 15.9mm |
| AT | 26.5mm |
| C | 15.9mm |
| ds | 12mm |
| r min | 0.6mm |
| Dynamic load | 9700 N |
| Static load | 6100 N |
| Speed in grease | - rpm |
| Speed in oil | - rpm |
