SKU: LFR.5201-142Z.MB

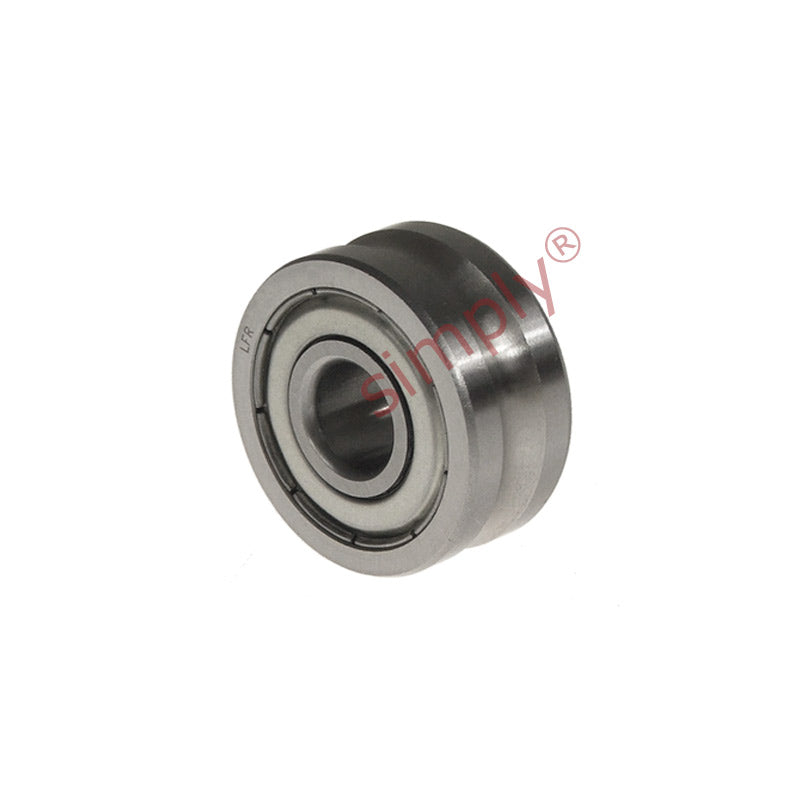

Major Brand LFR5201-142Z Yoke Type Track Roller with U Groove 12x39.9x18mm
Major Brand LFR5201-142Z Yoke Type Track Roller with U Groove 12x39.9x18mm
Equivalent to: LFR5201-14KDD
Out of stock
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 39.9mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 12mm |
|---|---|
| D max | 39.9mm |
| B | 20mm |
| AT | 24mm |
| C | 18mm |
| ds | 14mm |
| r min | 0.3mm |
| Dynamic load | 8900 N |
| Static load | 5000 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 12100 rpm |
