SKU: LFR.50/4-42Z.MB

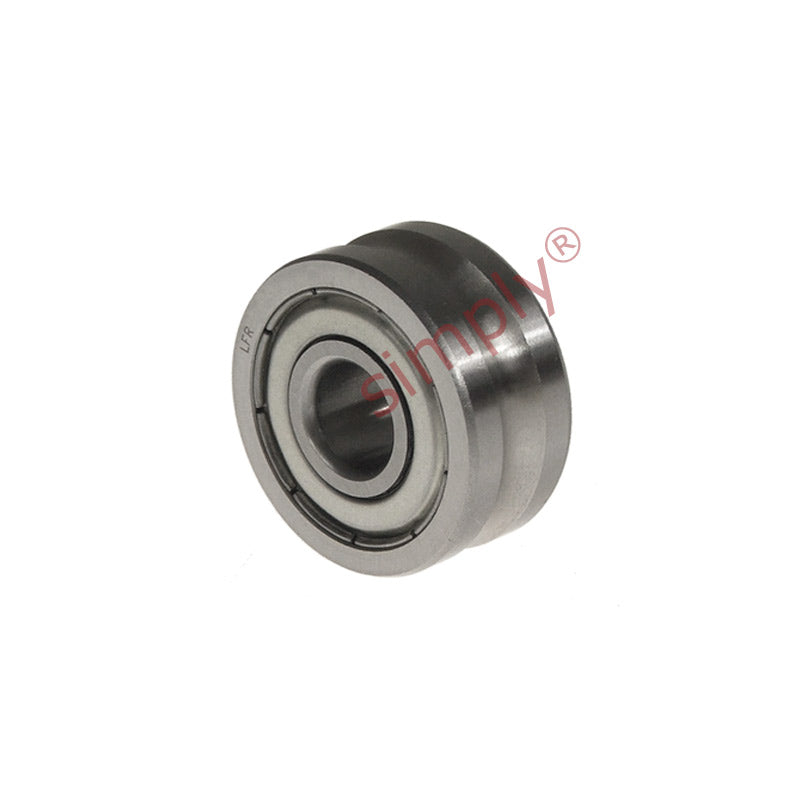

Major Brand LFR50/4-42Z Yoke Type Track Roller with U Groove 4x13x6/7mm
Major Brand LFR50/4-42Z Yoke Type Track Roller with U Groove 4x13x6/7mm
Equivalent to: LFR50/4KDD4 LFR50442ZHLC
Out of stock
Share this product
Description
Description
Please note: This track roller has a different width for the inner and outer raceways, the inner is 7mm wide the outer is 6mm wide.
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 13mm
- Width:
- 6mm / 7mm
- Seals / Shields:
- Metal Shielded
Technical
Technical

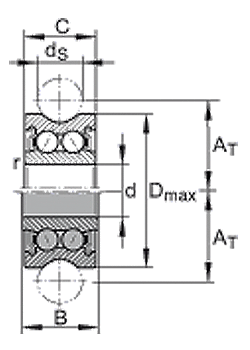

| d | 4mm |
|---|---|
| D max | 13mm |
| B | 7mm |
| AT | 7.55mm |
| C | 6mm |
| ds | 4mm |
| r min | 0.2mm |
| Dynamic load | 1050 N |
| Static load | 850 N |
| Speed in grease | 1150 rpm |
| Speed in oil | 1600 rpm |
