SKU: KBZ12-INA

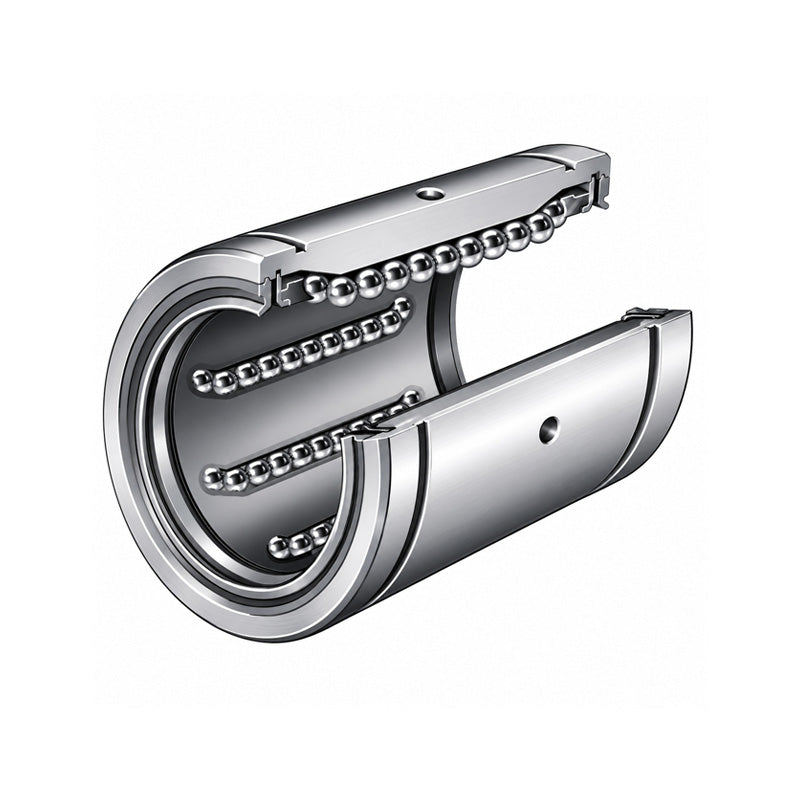

INA KBZ12 Imperial Linear Ball Bushing 3/4x1-1/4x1-5/8 inch
INA KBZ12 Imperial Linear Ball Bushing 3/4x1-1/4x1-5/8 inch
Out of stock
Description
Description
|
INA KBZ Imperial Linear Ball Bearings: Linear ball bearings of the machined range KBZ and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 19.05mm = 3/4 inch
- Outside Diameter:
- 31.75mm = 1-1/4 inch
- Width:
- 41.28mm = 1-5/8 inch
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 1-1/4 inch |
| C | 1-5/8 inch |
| C1 | 1.166 inch |
| C7 | 0.056 inch |
| D1 | 1.176 inch |
| Mass | 0.21 lbs |
| Number of rows of balls | 5? |
| Basic dynamic load rating C | 194 lbf |
| Basic static load rating C0 | 308 lbf |
