SKU: JSB047XP0

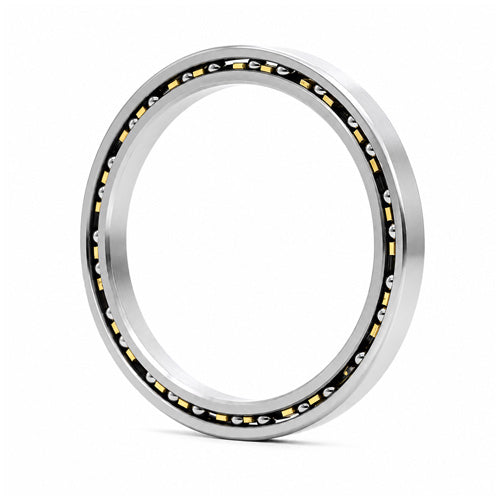

Silverthin JSB047XP0 Thin Section Sealed Four Point Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Silverthin JSB047XP0 Thin Section Sealed Four Point Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Equivalent to: JB047XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 136.53mm = 5-3/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 5.375 inch |
| Width | 0.312 inch |
| L1 | 4.886 inch |
| L2 | 5.162 inch |
| Static Radial Load | 9.043 kN |
| Dynamic Radial Load | 3.381 kN |
| Static Thrust Load | 22.615 kN |
| Dynamic Thrust Load | 8.452 kN |
| Static Moment Load | 22.868 kN |
| Dynamic Moment Load | 8.603 kN |
| Torque Max No Load | 32 Oz-In |
| Weight | 0.1588 kg |
