SKU: JSB047CP0

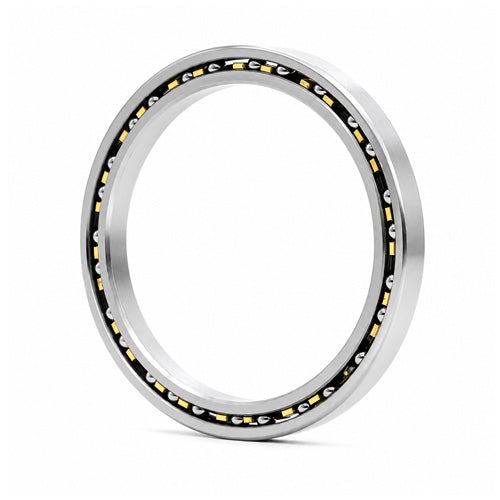

Silverthin JSB047CP0 Thin Section Sealed Radial Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Silverthin JSB047CP0 Thin Section Sealed Radial Contact Ball Bearing 4.75x5.375x0.312 inch - Allow 7-10 Days
Equivalent to: JB047CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 136.53mm = 5-3/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 5.375 inch |
| Width | 0.312 inch |
| L1 | 4.886 inch |
| L2 | 5.162 inch |
| Static Radial Load | 9.043 kN |
| Dynamic Radial Load | 3.381 kN |
| Torque Max No Load | 32 Oz-In |
| Weight | 0.1588 kg |
