SKU: JLM722948/JLM722912B-TIM

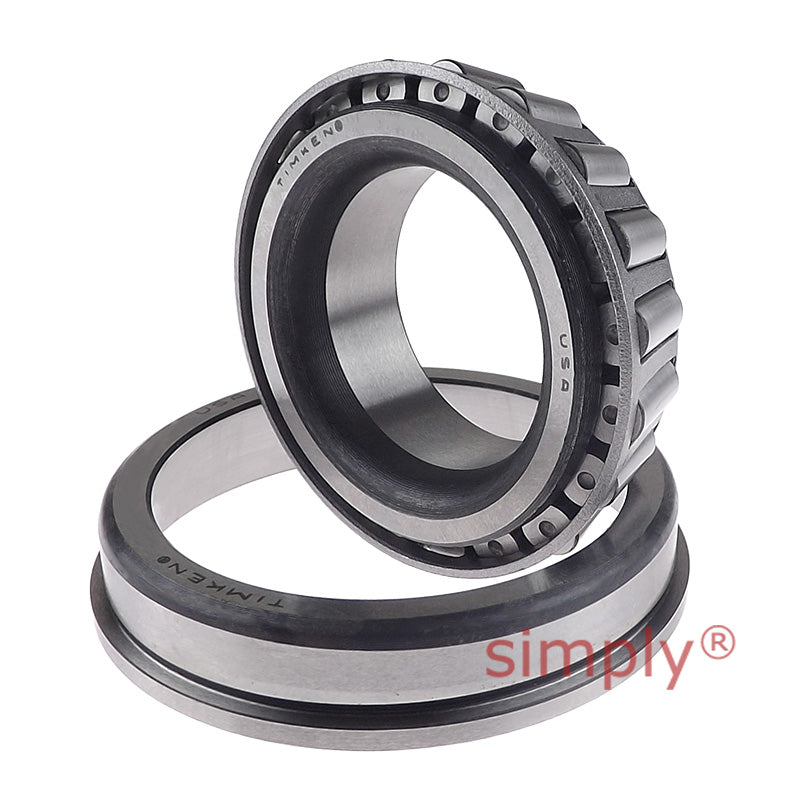

Timken JLM722948/JLM722912B TSF Single-Row Taper Roller Bearing 4.5276x6.4961x1.1024 inch
Timken JLM722948/JLM722912B TSF Single-Row Taper Roller Bearing 4.5276x6.4961x1.1024 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 115mm
- Outside Diameter:
- 165mm
- Width:
- 28mm
Technical
Technical
| d | 115mm = 4.5276 inch |
|---|---|
| D | 165mm = 6.4961 inch |
| T1 | 12.5mm = 0.4921 inch |
| Dynamic (1) C1 | 148000N |
| Factors (5) e | 0.46 |
| Factors (5) Y | 1.31 |
| Dynamic (2) C90 | 38300N |
| Dynamic (2) Ca90 | 30100N |
| Factors (5) K | 1.27 |
| Static Co | 245000N |
| Bearing B | 27mm = 1.063 inch |
| Bearing C | 21mm = 0.8268 inch |
| Bearing a(3) | 5.6mm = 0.22 inch |
| Bearing D1 | 172mm = 6.7717 inch |
| Bearing C2 | 5.5mm = 0.2165 inch |
| Shaft max shaft fillet radius R(4) | 3.3mm = 0.13 inch |
| Shaft backing shoulder diameter da | 121mm = 4.76 inch |
| Shaft backing shoulder diameter db | 127mm = 5 inch |
| Housing backing shoulder diameter Da | 160mm = 6.3 inch |
| G1 | 161 |
| G2 | 57.2 |
| Cg | 0.1449 |
