SKU: HMK4040ZWD-NTN

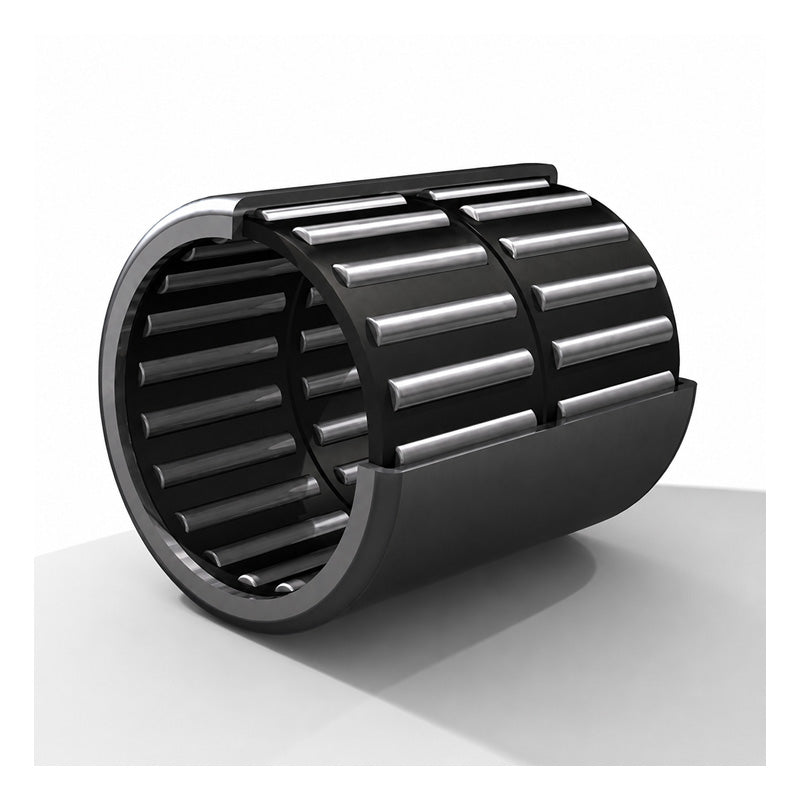

NTN HMK4040ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 40x50x40mm - Allow 2-3 Days
NTN HMK4040ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 40x50x40mm - Allow 2-3 Days
Out of stock
Share this product
Description
Description
HMK Type Drawn Cup Needle Roller Bearings: These bearings deliver superior load capacity compared to the standard HK series, featuring a thicker outer wall (increased outer diameter) for heavy-duty performance. Characterised by a low sectional height and compact design, they are an economical solution for high-load applications. Available in both open and sealed varieties.
Benefits: Enhanced radial load rating, reinforced outer width, and space-saving design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 50mm
- Width:
- 40mm
Technical
Technical

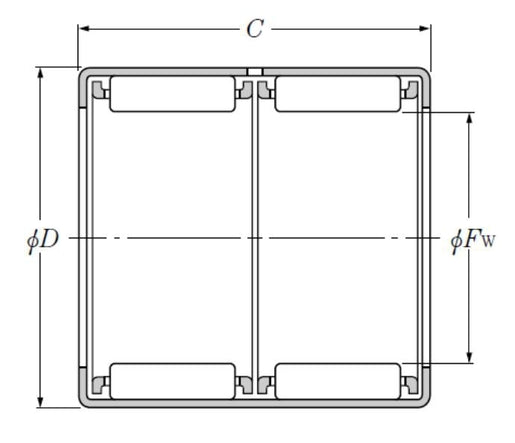

| Fw - Inside diameter | 40mm |
|---|---|
| D - Outside diameter | 50mm |
| C - Width of bearing, drawn cup or outer ring | 40mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 3mm |
| Cr - Dynamic load rating | 58.5 kN |
| C0r - Static load rating | 107 kN |
| N - Grease lubrication limit speed | 4000 tr/min |
| N - Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
