SKU: HM801346/310/Q-SKF

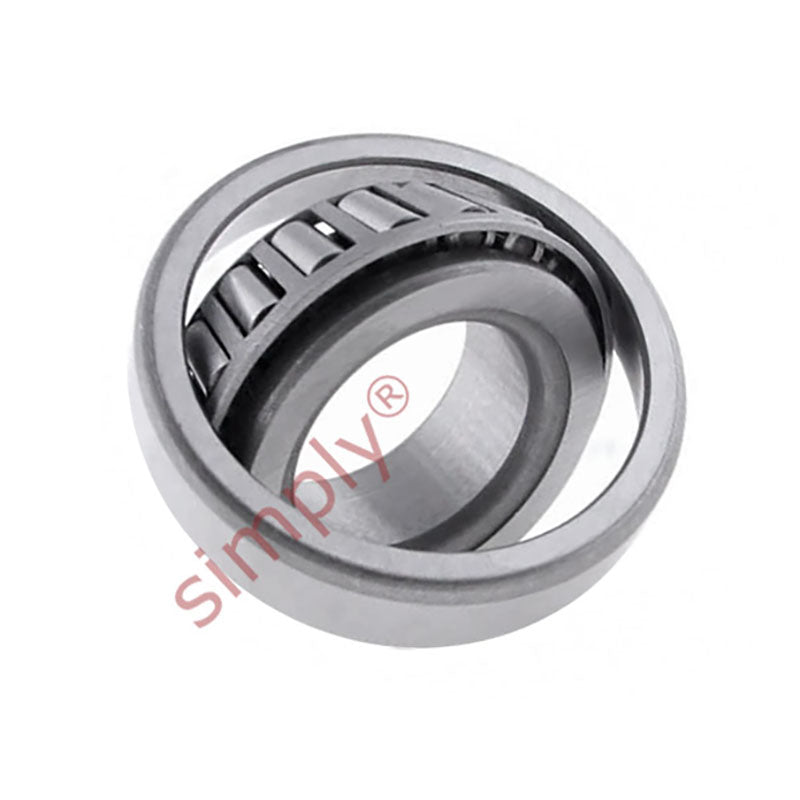

SKF HM801346/310/Q Imperial Taper Roller Bearing 1.5x3.25x1.1563 inches

Name: SKF HM801346/310/Q Imperial Taper Roller Bearing 1.5x3.25x1.1563 inches
Brand: SKF
SKU: HM801346/310/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 38.1mm = 1.5 (1-1/2) inch
Outside Diameter:: 82.55mm = 3.25 (3-1/4) inch
Width:: 29.37mm = 1.156 (1-5/32) inch
Seals / Shields:: None

Technical

d	38.1mm
D	82.55mm
T	29.37mm
Dynamic load	85.8 kN
Static load	118 kN
Fatigue load limit Pu	13.4 kN
Reference speed	6000 rpm
Limiting speed	8500 rpm
Weight	0.78 kg
d1	64.1mm
B	28.575mm
C	23.02mm
r1r2 min	0.8mm
r3r4 min	3.3mm
a	24mm
da max	49mm
db min	43mm
Da min	64mm
Da max	71mm
Db min	78mm
Ca min	4mm
Cb min	6mm
ra max	0.8mm
rb max	3mm
Calculation factor e	0.54
Calculation factor Y	1.1
Calculation factor Y0	0.6
