SKU: HM262749/710-SKF

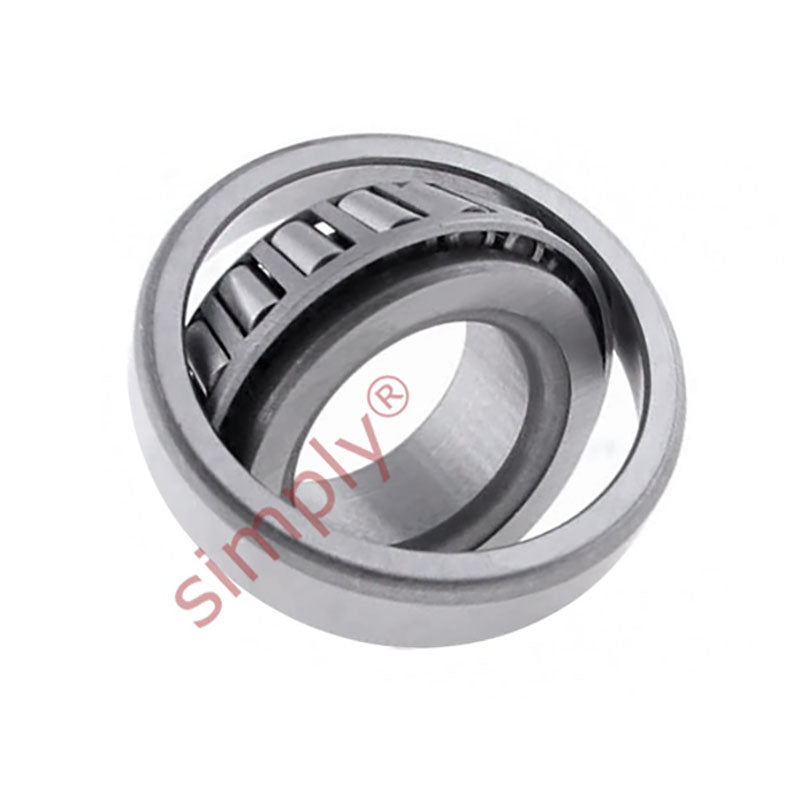

SKF HM262749/710 Imperial Taper Roller Bearing 13.625x19.25x3.75 inches
SKF HM262749/710 Imperial Taper Roller Bearing 13.625x19.25x3.75 inches
Out of stock
Share this product
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 346.08mm = 13.625 (13-5/8) inch
- Outside Diameter:
- 488.95mm = 19.25 (19-1/4) inch
- Width:
- 95.25mm = 3.75 (3-3/4) inch
- Seals / Shields:
- None
Technical
Technical
| d | 346.075mm |
|---|---|
| D | 488.95mm |
| T | 95.25mm |
| Dynamic load | 1420 kN |
| Static load | 3150 kN |
| Fatigue load limit Pu | 255 kN |
| Reference speed | 850 rpm |
| Limiting speed | 1200 rpm |
| Weight | 55 kg |
| d1 | 413mm |
| B | 95.25mm |
| C | 74.612mm |
| r1r2 min | 6.4mm |
| r3r4 min | 3.3mm |
| a | 88mm |
| da max | 379mm |
| db min | 378mm |
| Da min | 442mm |
| Da max | 472mm |
| Db min | 467mm |
| Ca min | 12mm |
| Cb min | 21mm |
| ra max | 6mm |
| rb max | 3mm |
| Calculation factor e | 0.33 |
| Calculation factor Y | 1.8 |
| Calculation factor Y0 | 1 |
