SKU: HM237546DD/HM237510-TIM

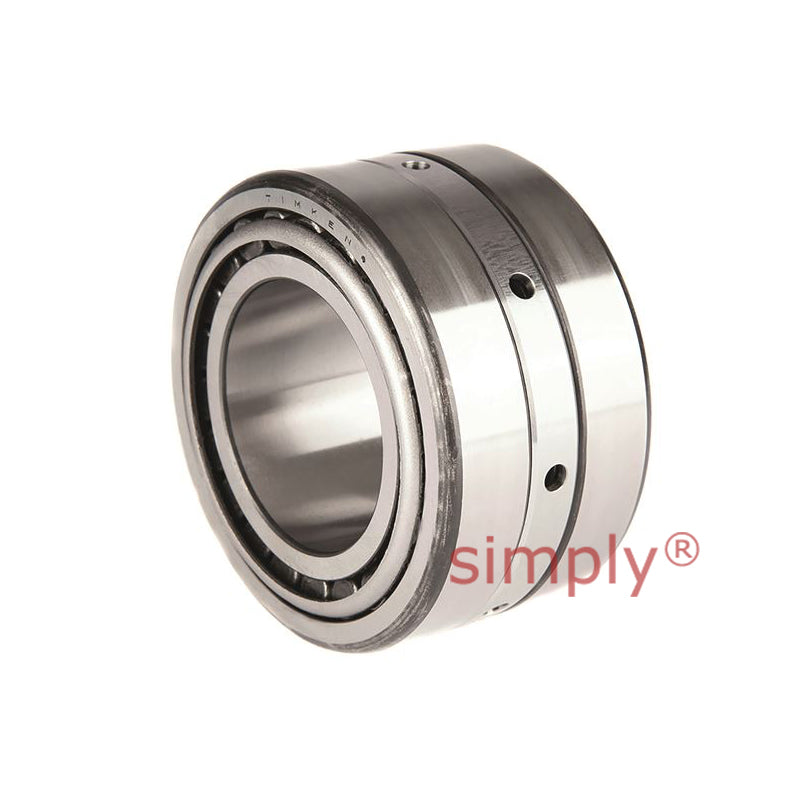

Timken HM237546DD/HM237510 TDI Double Inner Race Taper Roller Bearing 7x11.375x6.25x6.25 inch
Timken HM237546DD/HM237510 TDI Double Inner Race Taper Roller Bearing 7x11.375x6.25x6.25 inch
Out of stock
Description
Description

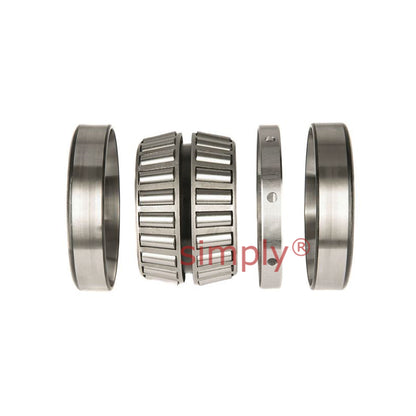

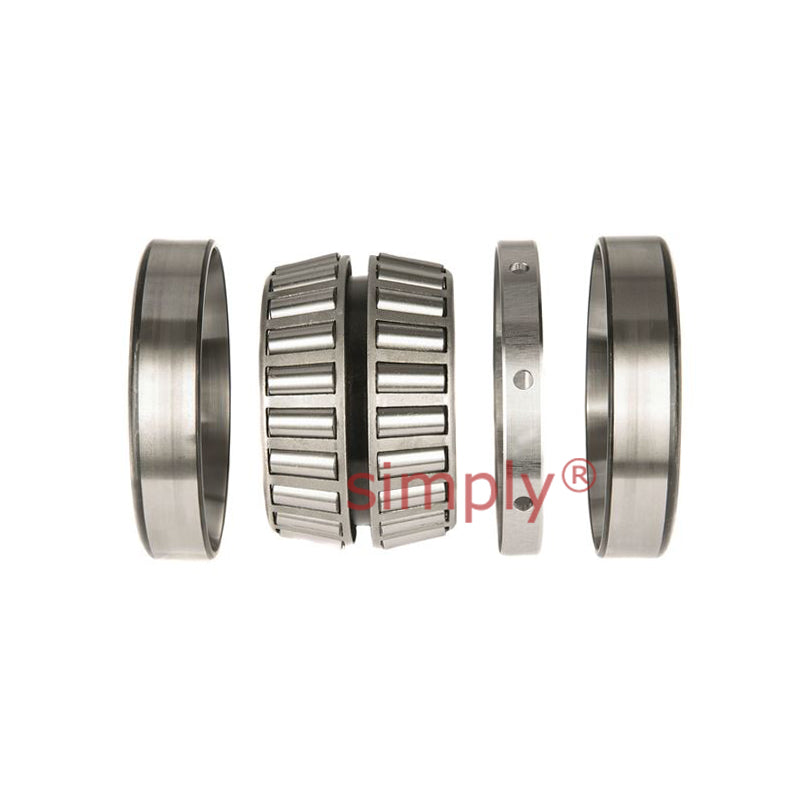

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 177.8mm = 7 inch
- Outside Diameter:
- 288.93mm = 11.375 (11-3/8) inch
- Width:
- 158.75mm = 6.25 (6-1/4) inch
Technical
Technical
| d | 177.8mm = 7 inch |
|---|---|
| D | 288.925mm = 11.375 inch |
| T | 158.75mm = 6.25 inch |
| C | 158.75mm = 6.25 inch |
| Dynamic (1) C1 | 1330000N |
| Factors (5) e | 0.32 |
| Factors (5) Y1 | 2.12 |
| Factors (5) Y2 | 3.15 |
| Dynamic (2) C90 | 198000N |
| Dynamic (2) Ca90 | 108000N |
| Dynamic (2) C90(2) | 344000N |
| Factors (5) K | 1.83 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 194mm = 7.64 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 266mm = 10.47 inch |
| G1 | 751 |
| G2 | 101 |
| Cg | 0.1168 |
