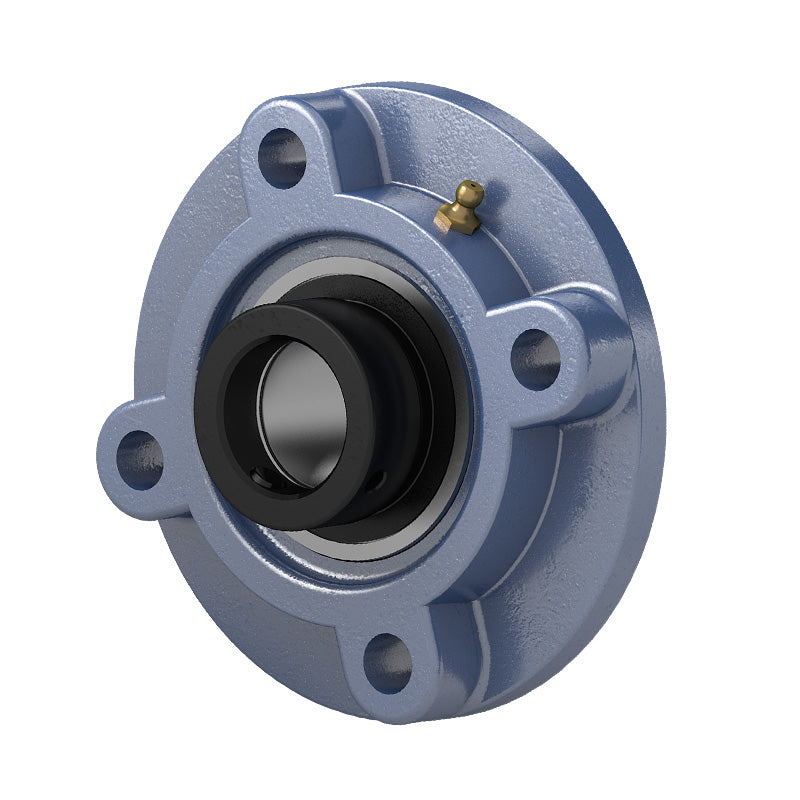

HCFC216-51 Imperial Four Bolt Cast Iron Round Flanged Housing with 3-3/16 inch Eccentric Collar Insert

HCFC200 Series Normal Duty 4 Bolt Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar / grub screw fixing

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

80.96mm = 3.187 (3-3/16) inch

Style:

HCFC

Pitch Circle Diameter:

141.29mm = 5.563 (5-9/16) inch
