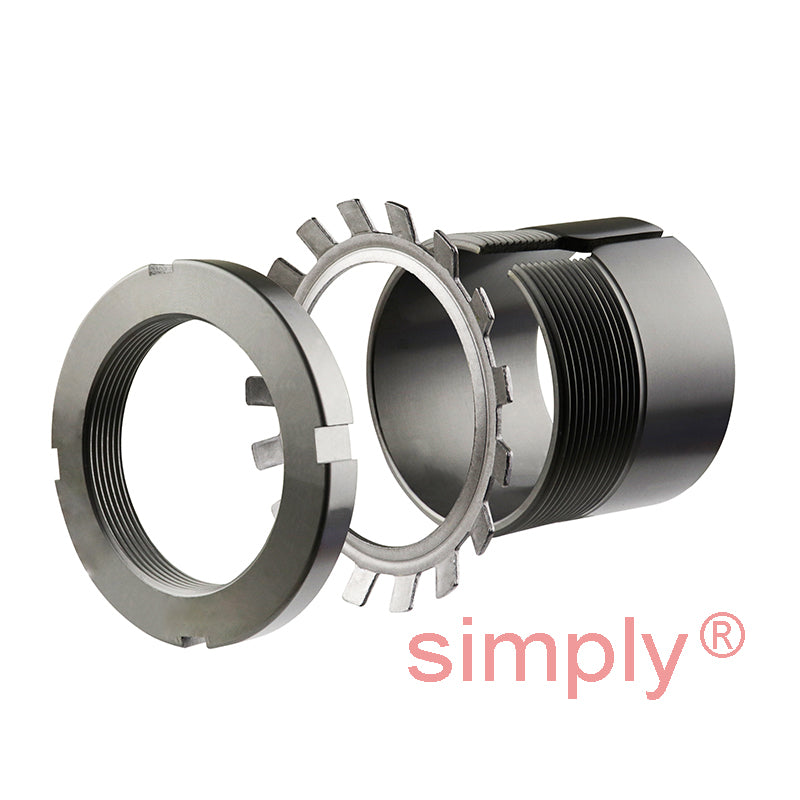

SKF H304 Adaptor Sleeve with Lock Nut and Locking Device for 17mm Shaft

Name: SKF H304 Adaptor Sleeve with Lock Nut and Locking Device for 17mm Shaft
Brand: SKF
SKU: H304-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 32mm
Width:: 28mm

Technical

---	Dimensions
d1	17mm
d	20mm
d3	32mm
B1	28mm
B2	7mm
G	Thread 20x1mm
Weight	0.04 kg
---	Assembly Parts
Sleeve	H304
Nut	KM4
Washer	MB4
---	Matching Self Aligning Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2204K+taper+self+open>2204K</a>
---	Matching Spherical Roller Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1304K+taper+self+open>1304K</a>
