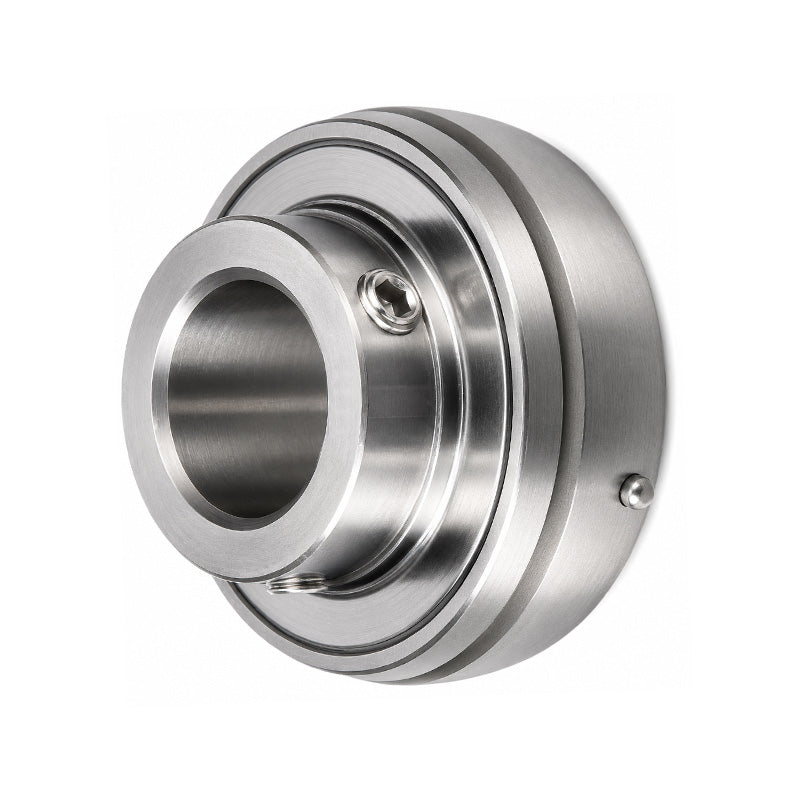

INA GY1103KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 30.16x62x38.1mm
INA GY1103KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 30.16x62x38.1mm
Out of stock
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Outside Diameter:
- 62mm
- Width:
- 38.1mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| d | 30.16mm |
| Dsp | 2.4409 inch |
| Dsp | 62mm |
| B | 1.5000 inch |
| B | 38.1mm |
| A | 0.228 inch |
| C | 0.709 inch |
| C2 | 0.815 inch |
| Ca | 0.185 inch |
| D1 | 2.047 inch |
| d1 | 1.583 inch |
| S | 0.626 inch |
| W | 1/8 inch |
| Dynamic load Cr | 4350 lbf |
| Dynamic load Cr | 19500 N |
| Static load C0r | 2550 lbf |
| Static load C0r | 11300 N |
| Weight | 0.73 lbs |
