SKU: GRA112-NPP-B-AS2/V-INA

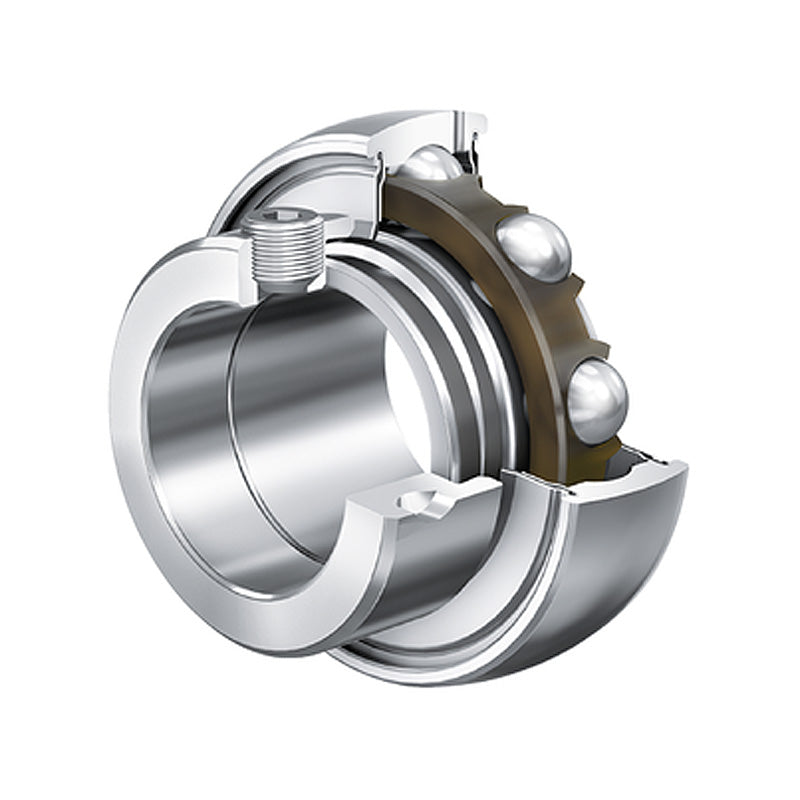

INA GRA112NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 44.45x85x43.8mm
INA GRA112NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 44.45x85x43.8mm
Out of stock
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 85mm
- Width:
- 43.8mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| d | 44.45mm |
| Dsp | 3.3465 inch |
| Dsp | 85mm |
| B1 | 1.7240 inch |
| B1 | 43.8mm |
| B | 1.189 inch |
| C | 0.866 inch |
| Ca | 0.252 inch |
| d2 | 2.138 inch |
| d3 | 2.48 inch |
| S | 0.433 inch |
| W | 3/16 inch |
| Dynamic load Cr | 7300 lbf |
| Dynamic load Cr | 32500 N |
| Static load C0r | 4600 lbf |
| Static load C0r | 20400 N |
| Weight | 1.52 lbs |
