SKU: GIRSW06-FLURO

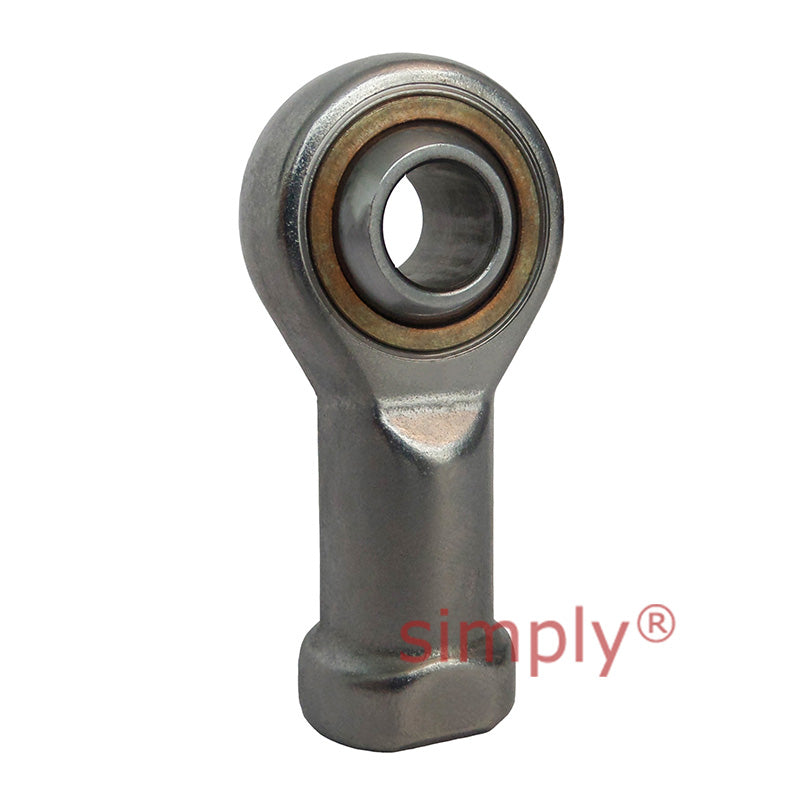

Fluro GIRSW06 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M6 Thread
Fluro GIRSW06 Right Hand Zinc Plated Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod End M6 Thread
Out of stock
Description
Description
Fluro GIRSW Series Stainless Steel / PTFE Lined Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from stainless steel with PTFE liner, maintenance free. For use at high dynamic pressure and tension loads in corrosive environments.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 6mm
- Inside Diameter:
- 6mm
- Material:
- Stainless Steel / PTFE Lined
Technical
Technical
| Bore Size D | 6mm |
|---|---|
| B | 9mm |
| M | 6.75mm |
| A | 20mm |
| F | 30mm |
| L | 40mm |
| K | 13mm |
| J | 10mm |
| O | 8.9mm |
| SW | 11mm |
| Thread Size G | M6 |
| GL | 12mm |
| Static Load Co | 13.1kN |
| Dynamic Load | 9.3kN |
| Limiting Speed | 530rev/min |
| Approx weight | 0.027kg |
