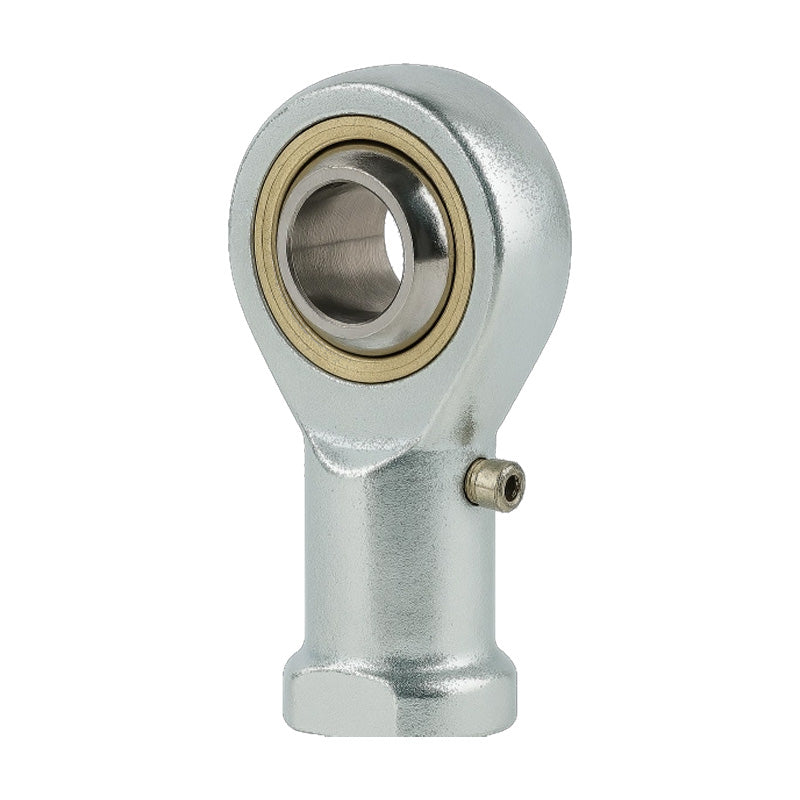

Fluro GIO20 Right Hand Zinc Plated Steel Female Plain Rod End M20x1.5 Thread
Fluro GIO20 Right Hand Zinc Plated Steel Female Plain Rod End M20x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GIO Series Zinc Plated Steel Maintenance Free Female Plain Rod Ends: Rod Ends with female thread made from free-cutting or heat-treated steel, zinc plated without the insert, running surface steel on steel. High axial load in one direction only. To be used only with limited oscillating movements.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Thread Length:
- 20x1.5mm
- Inside Diameter:
- 20mm
- Material:
- Steel
Technical
Technical
| Bore Size D | 20mm |
|---|---|
| B | 25mm |
| M | 18mm |
| A | 50mm |
| F | 77mm |
| L | 102mm |
| K | 34mm |
| J | 27.5mm |
| O | 24.3mm |
| SW | 32mm |
| Thread Size G | M20x1.5 |
| GL | 33mm |
| Static Load Co | 63kN |
| Dynamic Load | 20kN |
| Approx weight | 0.415kg |
