SKU: GILXS22-FLURO

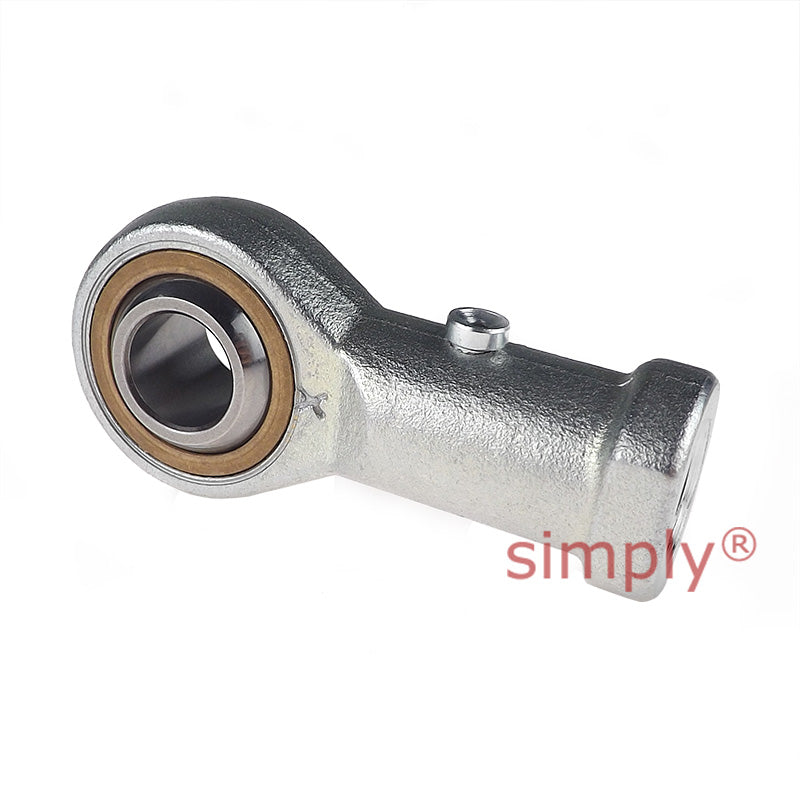

Fluro GILXS22 Left Hand Steel / Bronze Female Plain Rod End M22x1.5 Thread
Fluro GILXS22 Left Hand Steel / Bronze Female Plain Rod End M22x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GIXS Series Steel / Bronze Maintenance Required Female Plain Rod Ends: Rod Ends with female thread made from heat-treated steel, zinc plated and regreasable through a grease nipple in housing. Especially suitable for high pressure and tension loads.
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M22x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Thread Length:
- 22x1.5mm
- Inside Diameter:
- 22mm
- Material:
- Steel / Bronze
Technical
Technical
| Bore Size D | 22mm |
|---|---|
| B | 28mm |
| M | 20mm |
| A | 54mm |
| F | 84mm |
| L | 111mm |
| K | 37mm |
| J | 30mm |
| O | 25.8mm |
| SW | 32mm |
| Thread Size G | M22x1.5 |
| GL | 37mm |
| Static Load Co | 114kN |
| Dynamic Load | 38kN |
| Limiting Speed | 500rev/min |
| Approx weight | 0.54kg |
