SKU: GE80-KRR-B-AH01-FA164-INA

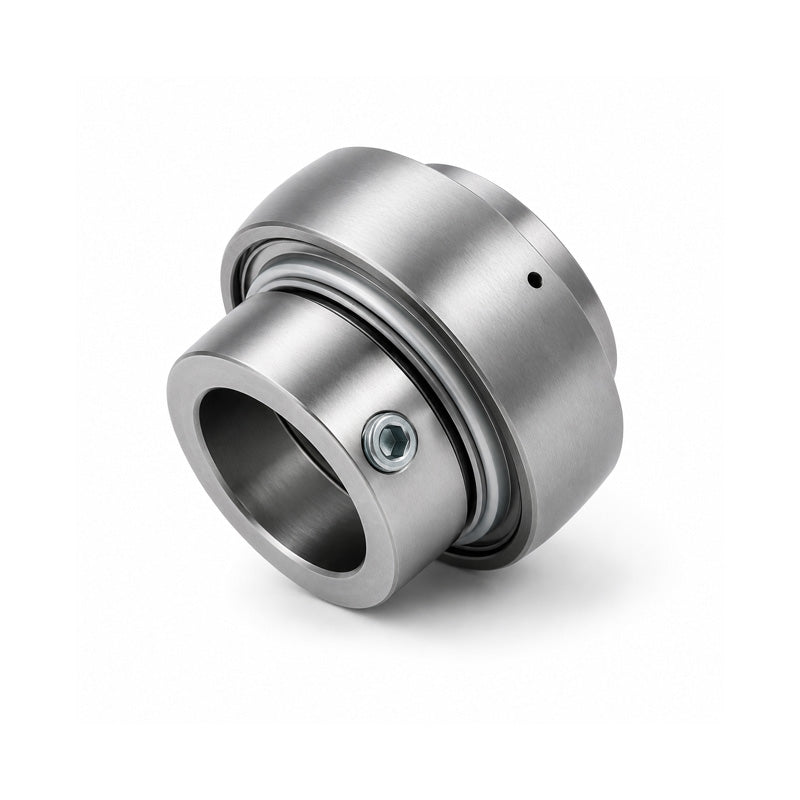

INA GE80KRRBAH01FA164 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures up to 250deg C 80x140x70.7mm
INA GE80KRRBAH01FA164 Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar for temperatures up to 250deg C 80x140x70.7mm
Out of stock
Description
Description
|
INA GE..KRR-B-FA164 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: +150 deg C to +250 deg C. Benefits: Can be re-lubricated, compensation of misalignment, suitable for high temperatures. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 70.7mm
Technical
Technical
| d | 80mm |
|---|---|
| Dsp | 140mm |
| B1 | 70.7mm |
| B | 53.2mm |
| C | 30mm |
| C2 | 38mm |
| Ca | 8.8mm |
| D1 | 120mm |
| d1 | 97mm |
| d3 max | 108mm |
| S | 23.4mm |
| W | 6mm |
| Dynamic load Cr | 72000 N |
| Static load C0r | 54000 N |
| Weight | 2.95 kg |
