SKU: GAY107-NPP-B-AS2/V-INA

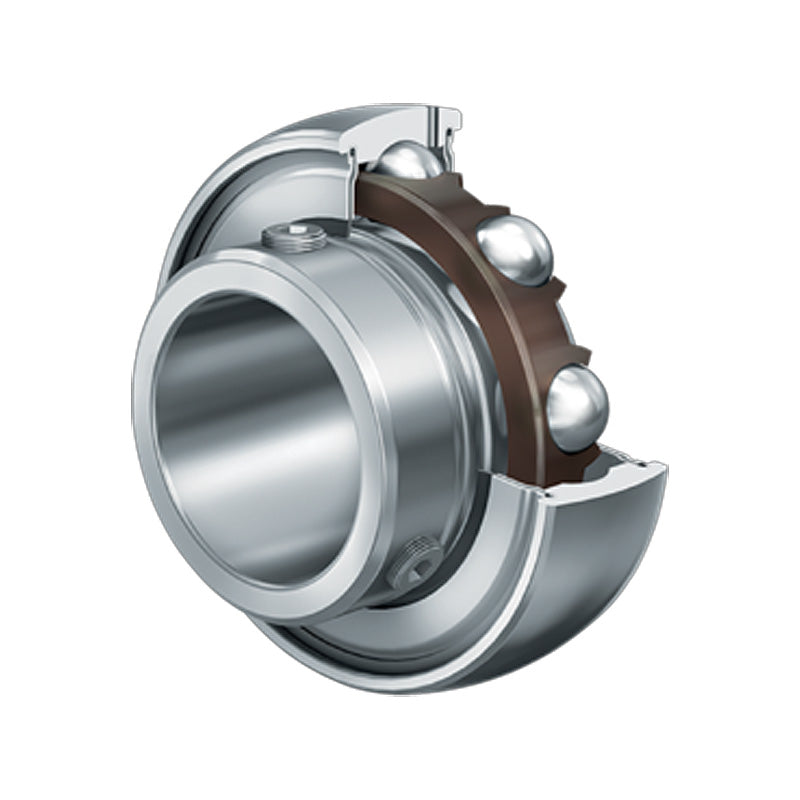

INA GAY107NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 36.51x72x35mm
INA GAY107NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 36.51x72x35mm
Out of stock
Description
Description
|
INA GAY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Width:
- 35mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| d | 36.51mm |
| Dsp | 2.8346 inch |
| Dsp | 72mm |
| B | 1.3780 inch |
| B | 35mm |
| A | 0.236 inch |
| C | 0.748 inch |
| Ca | 0.22 inch |
| d1 | 1.846 inch |
| d2 | 1.752 inch |
| S | 0.374 inch |
| W | 1/8 inch |
| Dynamic load Cr | 5730 lbf |
| Dynamic load Cr | 25500 N |
| Static load C0r | 3440 lbf |
| Static load C0r | 15300 N |
| Weight | 0.86 lbs |
