SKU: GAY008-NPP-B-AS2/V-INA

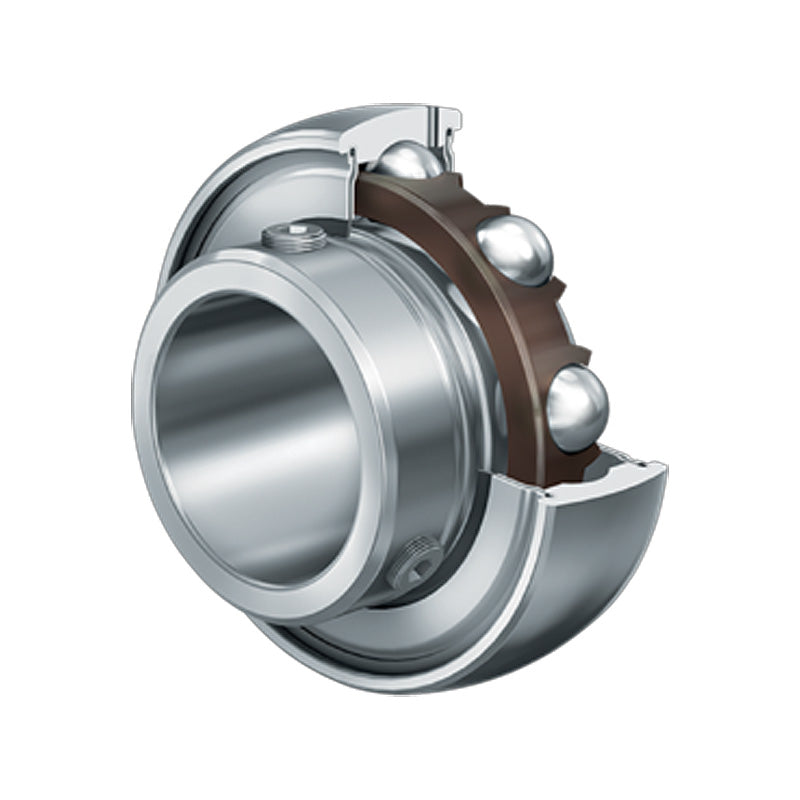

INA GAY008NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 12.7x40x22mm
INA GAY008NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Grub Screws 12.7x40x22mm
Out of stock
Description
Description
|
INA GAY..NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 40mm
- Width:
- 22mm
Technical
Technical
| d | 1/2 inch |
|---|---|
| d | 12.7mm |
| Dsp | 1.5748 inch |
| Dsp | 40mm |
| B | 0.8661 inch |
| B | 22mm |
| A | 0.157 inch |
| C | 0.472 inch |
| Ca | 0.134 inch |
| d1 | 0.941 inch |
| d2 | 0.902 inch |
| S | 0.236 inch |
| W | 3/32 inch |
| Dynamic load Cr | 2200 lbf |
| Dynamic load Cr | 9800 N |
| Static load C0r | 1070 lbf |
| Static load C0r | 4750 N |
| Weight | 0.22 lbs |
