SKU: GALO20-FLURO

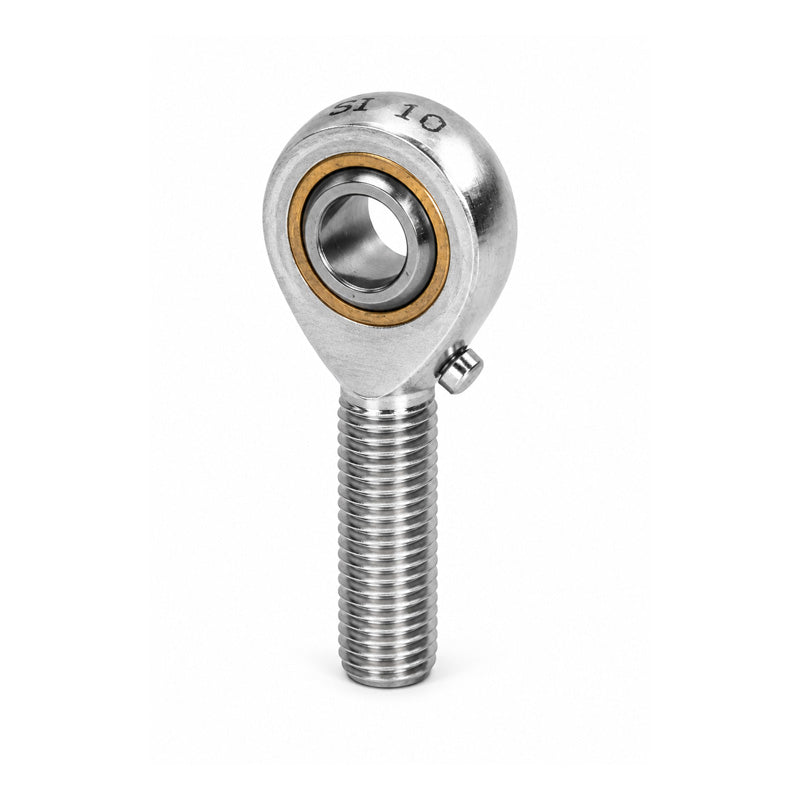

Fluro GALO20 Left Hand Zinc Plated Steel / Steel Male Plain Rod End M20x1.5 Thread
Fluro GALO20 Left Hand Zinc Plated Steel / Steel Male Plain Rod End M20x1.5 Thread
Out of stock
Share this product
Description
Description
Fluro GAO Series Zinc Plated Steel Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated without the insert, running surface steel on steel. High axial load in one direction only. To be used only with limited oscillating movements.
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Thread Length:
- 20x1.5mm
- Inside Diameter:
- 20mm
- Material:
- Steel / Steel
Technical
Technical
| Bore Size D | 20mm |
|---|---|
| B | 25mm |
| M | 18mm |
| A | 50mm |
| F | 78mm |
| L | 103mm |
| O | 24.3mm |
| Thread Size G | M20x1.5 |
| GL | 47mm |
| Static Load Co | 63kN |
| Dynamic Load | 20.5kN |
| Approx weight | 0.348kg |
