SKU: FYT3/4TF/AH-SKF

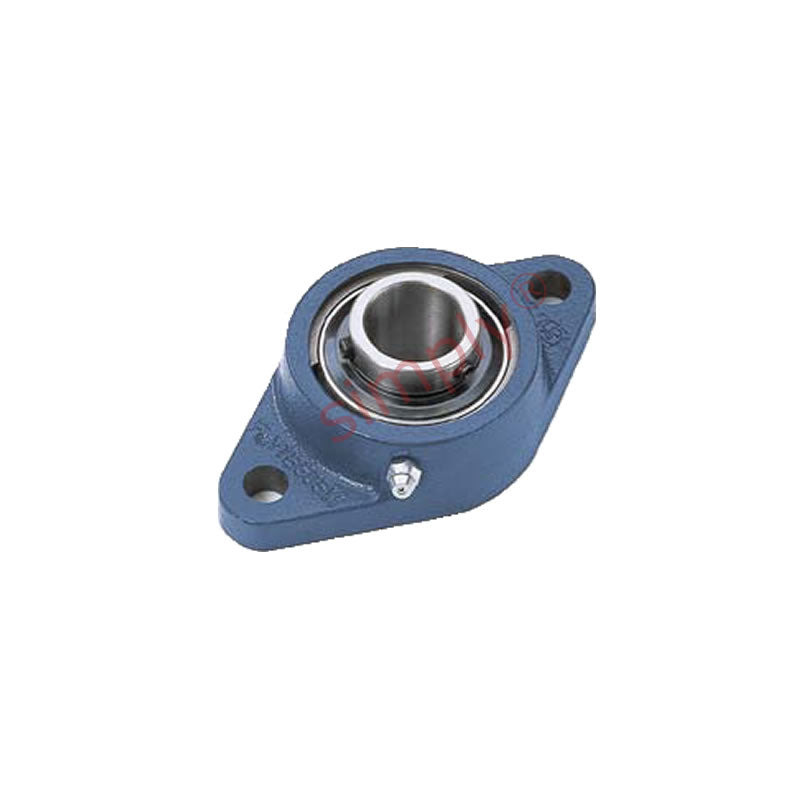

SKF FYT3/4TF/AH Oval Cast Housing with Grub Screw 3/4 inch Insert
SKF FYT3/4TF/AH Oval Cast Housing with Grub Screw 3/4 inch Insert
Out of stock
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- FYT
- Bolt Hole Centres:
- 89.7mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 24.6mm |
| A2 | 11.1mm |
| B | 31mm |
| H | 111.9mm |
| J | 89.7mm |
| L | 60.5mm |
| N | 11.1mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 32.6mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit | 0.28 kN |
| Limiting speed | 8500 rpm |
| Weight | 0.5 kg |
| Housing | Insert |
