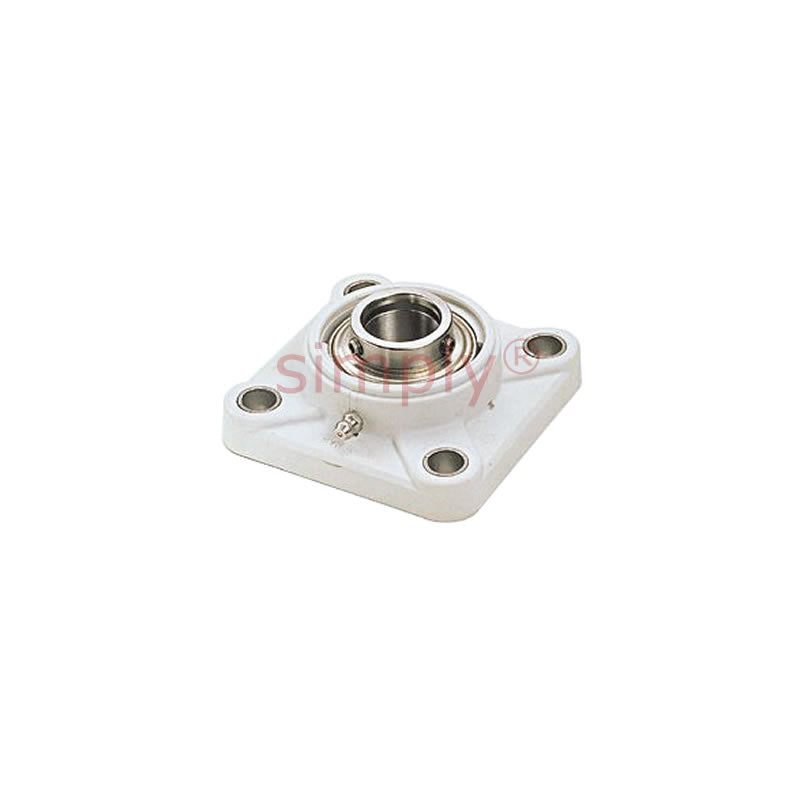

SKF FYL1-1/2THR Square Housing for the Food Industry with 1-1/2 inch Insert
SKF FYL1-1/2THR Square Housing for the Food Industry with 1-1/2 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FYL
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 37.5mm |
| A2 | 17mm |
| B | 49.2mm |
| J | 102mm |
| L | 130mm |
| N | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 53.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 24.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 33.5mm |
| Weight | 0.95 kg |
| Housing | FYL508 |
| Insert | YAR208-108-2RFGR/HV |
| Compatible end cover closed | ECL208 |
| Compatible end cover open | ECL208-108B |
