SKU: FY2.15/16TF-SKF

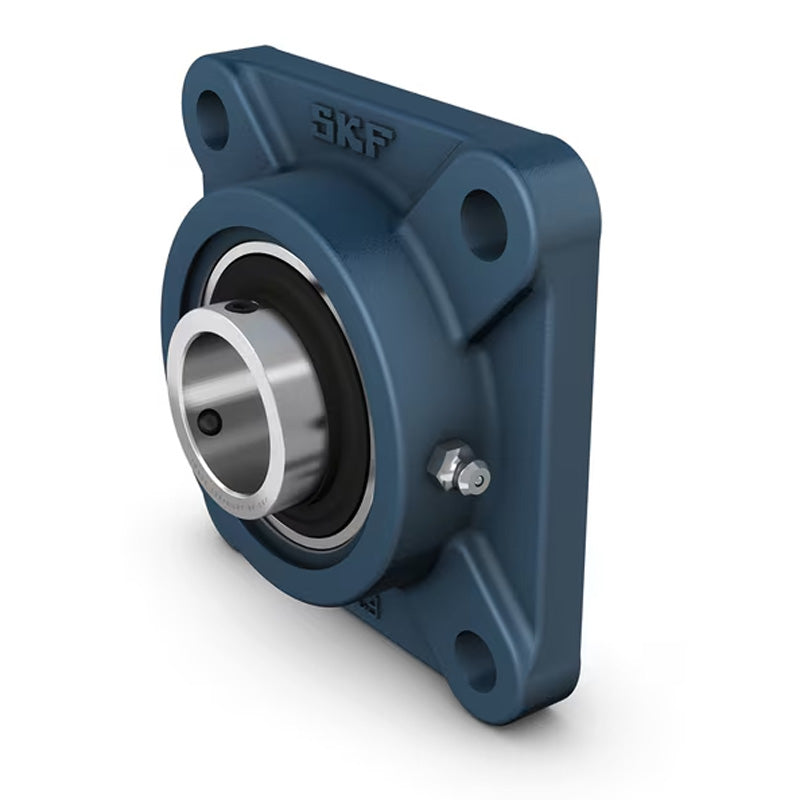

SKF FY2-15/16TF Square Cast Housing with Grub Screw 2-15/16 inch Insert
SKF FY2-15/16TF Square Cast Housing with Grub Screw 2-15/16 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 152.4mm
Technical
Technical
| d | 2-15/16 inch |
|---|---|
| A1 | 65.1mm |
| A2 | 19mm |
| B | 73.1mm |
| J | 152.4mm |
| L | 197mm |
| G | 20mm |
| s1 | 46.1mm |
| T | 87.4mm |
| Static load Cr | 49 kN |
| Dynamic load Cor | 66.3 kN |
| Fatigue load limit | 2.04 kN |
| Limiting speed | 2600 rpm |
| Weight | 8.15 kg |
| Housing | Insert |
