SKU: FSAFC2520/3-1/2-SKF

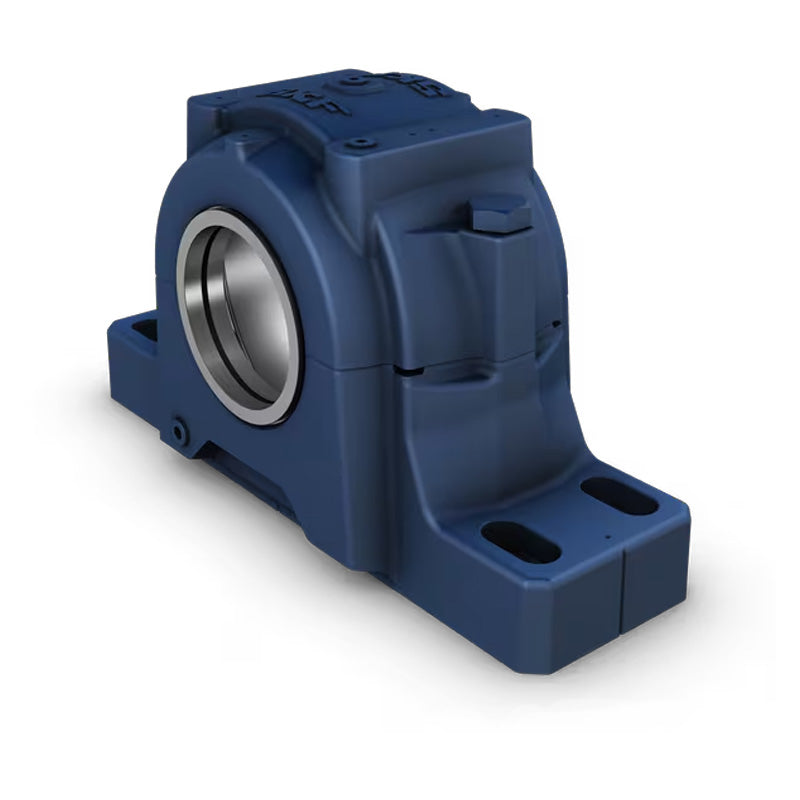

SKF FSAFC2520/3-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAFC2520/3-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
Technical
Technical
| Housing | FSAF520 |
|---|---|
| Triple Ring Seal | LOR103 |
| Taconite Seal | TER103 |
| Bearing | C2220EK |
| Adaptor Sleeve | HE320E |
| Fixing Rings | 1 x SR20-17 |
| End Cover | EPR12 |
| da | 3-1/2 inch |
| A1 | 4-3/8 inch = 111.1mm |
| A2 | 6-1/8 inch = 155.6mm |
| A3 | 8-3/4 inch = 222.3mm |
| H | 8-9/16 inch = 217.5mm |
| H1 | 4-1/2 inch = 114.3mm |
| H2 | 1-3/4 inch = 44.5mm |
| Static oil level H3 Roller bearing | 1-21/32 inch = 42.1mm |
| Static oil level H3 Ball bearing | 1-21/32 inch = 42.1mm |
| J max | 13-1/8 inch = 333.4mm |
| J min | 11-5/8 inch = 295.3mm |
| J1 | 2-3/8 inch = 60.3mm |
| L | 15-1/4 inch = 387.4mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 33.6 kg |
