SKU: FSAF1517/3-SKF

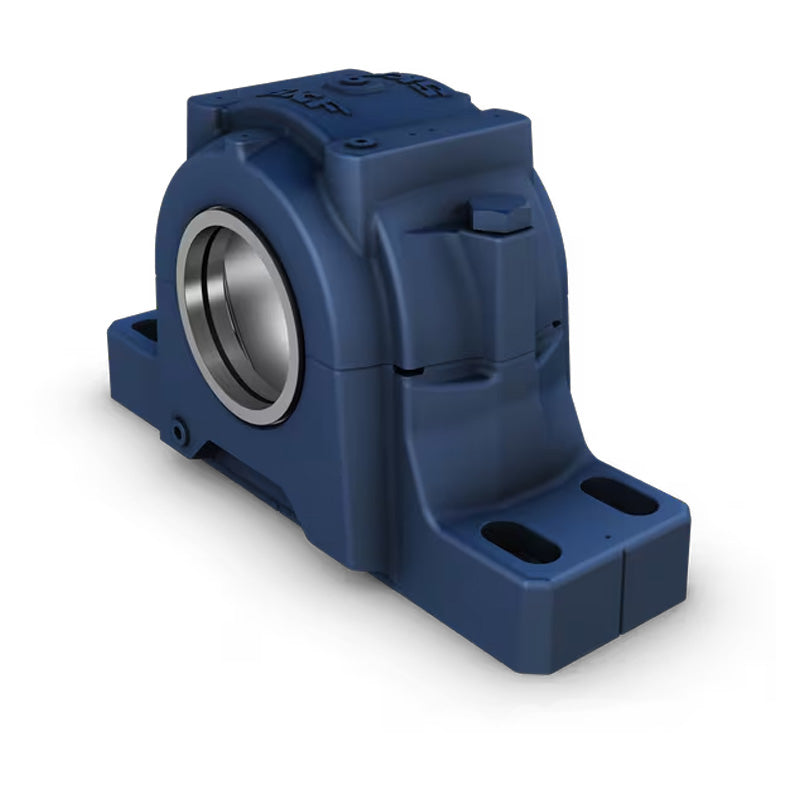

SKF FSAF1517/3 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF FSAF1517/3 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
Technical
Technical
| Housing | FSAF517 |
|---|---|
| Triple Ring Seal | LOR54 |
| Taconite Seal | TER54 |
| Bearing | 1217K |
| Adaptor Sleeve | HE217 |
| Fixing Rings | 2 x SR1517 |
| End Cover | EPR9 |
| da | 3 inch |
| A1 | 3-1/2 inch = 88.9mm |
| A2 | 5 inch = 127mm |
| A3 | 7-13/16 inch = 198.4mm |
| H | 7-1/8 inch = 181mm |
| H1 | 3-3/4 inch = 95.25mm |
| H2 | 1-1/4 inch = 31.8mm |
| Static oil level H3 Roller bearing | 1-3/8 inch = 34.9mm |
| Static oil level H3 Ball bearing | 1-15/32 inch = 37.3mm |
| J max | 11 inch = 279.4mm |
| J min | 9-7/8 inch = 250.8mm |
| J1 | 2-1/8 inch = 54mm |
| L | 13 inch = 330.2mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 5/8 inch = 16mm |
| Weight | 15 kg |
